FaceDeep 3
I-AI Based Smart Face Recognition kanye ne-RFID Terminal
FaceDeep I-3 Series iyitheminali yokuqaphela ubuso esekelwe ku-AI yesizukulwane esisha efakwe i-dual core CPU kanye ne-Embedded Linux ngeyakamuva. BioNANO® i-algorithm yokufunda ejulile. FaceDeep 3 series isekela ubuningi obufinyelela ku-6,000 izizindalwazi zobuso obuguqukayo futhi ingafinyelela isikhathi esisha sokufunda sobuso obungaphansi kweminyaka engu-1 kanye nesikhathi sokubonwa kobuso esingaphansi kuka-300ms ngo-1:6,000. FaceDeep3 ihlomisa isikrini sokuthinta esingu-5" IPS esigcwele ama-engeli. FaceDeep3 ingabona ukutholakala kwe-liveness yeqiniso ukuvimbela ubuso mbumbulu ezithombeni nakumavidiyo.
-
Izici
-
I-1GHz Linux Based processor
Iphrosesa entsha ye-Linux esekelwe ku-1Ghz iqinisekisa isikhathi sokuqhathanisa esingu-1:10,000 esingaphansi kwesekhondi elingu-0.3. -
I-Wi-Fi Flexible Communication
Umsebenzi we-Wi-Fi ungabona ukuxhumana okungenantambo okuzinzile futhi ubone ukufakwa okuguquguqukayo kwemishini. -
Ukutholwa kobuso be-Liveness
Ukubonwa kobuso okubukhoma okusekelwe kukukhanya kwe-infrared nokubonakalayo. -
I-Wide Angle Camera
Ikhamera engu-120° ultra-wide-engeli inika amandla ukubonwa kobuso okusheshayo. -
Isikrini esigcwele se-IPS
Isikrini se-IPS esinemibala siqinisekisa ukusebenzisana okuhle kakhulu nolwazi lomsebenzisi futhi singanikeza izaziso ezicacile kubasebenzisi. -
Iseva Yewebhu
Iseva yewebhu iqinisekisa ukuxhumana okushesha kalula kanye nokuzilawula kwedivayisi. -
Uhlelo lokusebenza lwamafu
Uhlelo lokusebenza lwamafu olususelwe kuwebhu lukuvumela ukuthi ufinyelele kudivayisi nganoma iyiphi indawo yokugcina yeselula noma nini nanoma kuphi.
-
-
Ukucaciswa
Umthamo imodeli
FaceDeep 3
FaceDeep I-3 Pro
FaceDeep I-3 4G
User
6,000 6,000 6,000 Card
6,000 6,000 6,000 Ngena
100,000 Interface I-TCP / IP √ RS485 √ Wi-Fi √ - - I-Wi-Fi + i-Bluetooth - √ - 4G - - √ Dlulisa amehlo 1 Phinda Udlulise I-Alarm yolaka √ Wiegand 1 phakathi / 1 Phuma Othintana Nomnyango √ General Imodi Yokuhlonza Ubuso, Ikhadi, I-ID+Iphasiwedi Ibanga lokubonwa kobuso 0.5~1.5m (19.69~59.06”) Isivinini Sokubona Ubuso <0.3 S I-RFID Technology 125KHz EM
13.56 MHz Mifare
13.56 MHz Mifare
Umsebenzi Imodi Yokuhamba Isikhathi 8 Iqembu, Indawo Yesikhathi 16 Amaqembu, 32 Indawo Yesikhathi I-WebServer √ Qopha i-Auto Inquiry √
Iphimbo Lezwi √ Insimbi Yewashi √ Izilimi Eziningi √ Hardware CPU
Okubili 1.0 GHz amakhamera
Ikhamera Ekabili ( VIS & NIR ) Indawo yokuskena Okuvundlile: ± 20° Kuqondile: ±20° Khombisa 5" TFT Touch Screen Resolution 640*480 I-Smart LED Amaprosesa asekelwe Ubukhulu(W x H x D) 14.6*16.5*3.4 cm 5.75*6.50*1.34” Temperature Ukusebenza -5℃~60℃ 23℉~160℉ Umswakama 0% kuya 95% Ukungena kwamandla DC 12V 2A Ukuvumelana Kwesofthiwe CrossChex Standard
√
CrossChex Cloud
√ -
Isicelo
Ukulanda Okuhlobene
- Incwajana 11.2 MB
-
Anviz FaceDeep3 Series Incwajana
08/18/2022
11.2 MB
- Incwajana 13.2 MB
-
2022_Ukulawula Ukufinyelela Nesikhathi Nezixazululo Zokuba Khona_En(Ikhasi elilodwa)
02/18/2022
13.2 MB
- Incwajana 13.0 MB
-
2022_Ukulawula Ukufinyelela Nesikhathi Nezixazululo Zokuba Khona_En(ifomethi yokusabalalisa)
02/18/2022
13.0 MB
- Manual 1.9 MB
-
FaceDeep3_Series_QuickGuide_EN
08/04/2021
1.9 MB
I-Faq Ehlobene
-
Idalwe ngu: Chalice Li
Kulungiswe ngomhla ka-: ULwesibili, Juni 1, 2021 ngo-10:20
Kunezindlela ezimbili zokubhalisa abasebenzisi. Ungenza ukubhalisa okusheshayo ngokubhalisa ubuso(A). Uma ufuna ukwenza ukubhaliswa okunemininingwane, sicela uye kokuthi Umsebenzisi, bese wengeza umsebenzisi(B) ngaphansi kwale menyu.
A.) Bhalisa ubusoB.) Engeza umsebenzisi
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe -
Idalwe ngu: Chalice Li
Kulungiswe ngomhla ka-: ULwesihlanu, Juni 4, 2021 ngo-11:58
Isinyathelo1: Faka imenyu yenethiwekhi kusuka kumenyu enkulu
Isinyathelo sesi-2: Setha imodi ye-WAN njenge-WIFI
Isinyathelo sesi-3: Iya kumenyu ye-Wifi, qedela ukusetha kwakho kwemodi ye-wifi IP bese usesha i-wifi yakho.
Isinyathelo sesi-4: Sebenzisa i- CrossChex isofthiwe yokwengeza idivayisi. Ungasesha idivayisi noma ufake mathupha ikheli le-IP ledivayisi ngendlela ye-LAN ngaphansi kwezilungiselelo zedivayisi.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: ULwesibili, Juni 1, 2021 ngo-16:12
Ukwehlisa noma ukuthuthukisa i-firmware ekhethekile ye- FaceDeep 3 /FaceDeep 3 IRT amadivayisi, udinga ukuphoqelela ukuthuthukiswa kwe FaceDeep 3 Uchungechunge nge-USB Flash Drive.
Imininingwane izinyathelo njengoba ngezansi:
Isinyathelo 1: Sicela ulungise i-USB Flash Drive enefomethi ye-FAT namandla angaphansi kuka-8GB.
Isinyathelo sesi-2: Kopisha ifayela le-firmware ku-USB Flash Drive bese uxhuma i-USB Flash Drive ku FaceDeep 3 imbobo ye-USB.
Isinyathelo sesi-3: Setha FaceDeep 3 Uchungechunge lokuphoqelela imodi yokuthuthukisa i-firmware.
Ngena kudivayisi Main imenyu, chofoza Amasethingi bese ukhetha Update.
Sicela uchofoze ngokushesha isithonjana "Idiski ye-USB" ku FaceDeep 3 isikrini esinaso (izikhathi eziyi-10-20) kuze kuvele i- Update Iphasiwedi interface okokufaka.
Faka u-“12345” bese uchofoza u-“Enter” ukuze Imodi yokuthuthukisa ephoqelelwe! Chofoza "Qala" ukuze uthuthukise i-firmware. (Sicela uqinisekise ukuthi i-USB Flash Drive isivele ixhunyiwe kudivayisi.)
Ngemuva kokuthuthukisa i-firmware sicela uqale kabusha idivayisi bese uhlola I-Kernel Ver. kusukela Ulwazi oluyisisekelo is gf561464 ukuqinisekisa ukuthi ukuthuthukiswa kuyimpumelelo. Uma kungenjalo sicela uhlole izinyathelo ze-opertaing futhi uthuthukise i-firmware futhi.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe -
Idalwe ngu: Felix Fu
Kulungiswe ngomhla ka-: Lwesithathu, Juni 3, 2021 ngo-20:44
Sicela uqinisekise ukuthi Anviz idivayisi isivele ixhumeke ku-inthanethi futhi ixhunywe ne CrossChex Cloud akhawunti ngaphambi kokuthi uxhume idivayisi kuyo CrossChex Cloud Uhlelo. Uma ungazi ukuthi ulenza kanjani idivayisi ku-inthanethi, sicela uhlole i-FAQ yokuthi ungayixhuma kanjani idivayisi kuyo FaceDeep 3.
Uma isilungiselelo senethiwekhi sesilungile, singaqhubeka nokusetha uxhumano lwamafu.
Isinyathelo1: Iya ekhasini lokuphatha idivayisi (beka umsebenzisi:0 PW: 12345, bese ulungile) ukuze ukhethe inethiwekhi.
Isinyathelo2: Khetha inkinobho ye-Cloud.
Isinyathelo3:Okokufaka Umsebenzisi kanye Nephasiwedi efanayo naleyo Kusistimu Yefu, Ikhodi Yefu, kanye Nephasiwedi Yefu.
Qaphela: Ungathola imininingwane ye-akhawunti yakho ohlelweni lwakho lwamafu njengesithombe esingezansi, ikhodi yefu i-id ye-akhawunti yakho, iphasiwedi yefu iphasiwedi yakho ye-akhawunti.
Isinyathelo sesi-4: Khetha iseva
I-US - Iseva: Iseva Yomhlaba Wonke: https://us.crosschexcloud.com/
I-AP-Server: Iseva yase-Asia-Pacific: https://ap.crosschexcloud.com/
Isinyathelo5: Ukuhlolwa Kwenethiwekhi
Qaphela: Ngemva idivayisi futhi CrossChex Cloud zixhunyiwe, i ekhoneni elingakwesokudla Ilogo yefu izonyamalala;
Uma idivayisi ixhuma ne CrossChex Cloud ngempumelelo, isithonjana sedivayisi sizokhanyiswa.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe -
Idalwe ngu: Chalice Li
Kulungiswe ngomhla ka-: ULwesihlanu, Juni 4, 2021 ngo-15:58
Isinyathelo1: Faka imenyu yenethiwekhi kusuka kumenyu enkulu
Isinyathelo 2: Setha imodi ye-WAN njenge-Ethernet
Isinyathelo sesi-3: Iya kumenyu ye-Ethernet, qedela ukusetha kwakho kwemodi ye-Ethernet ip, i-DHCP noma i-static kuncike esimisweni senethiwekhi yendawo.
Isinyathelo sesi-4: Sebenzisa i- CrossChex isofthiwe yokwengeza idivayisi. Ungasesha idivayisi noma ufake mathupha ikheli le-IP ledivayisi ngendlela ye-LAN ngaphansi kwezilungiselelo zedivayisi.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Ungawahlola Kanjani Amarekhodi FaceDeep 3? 06/11/2021
Idalwe ngu: Chalice Li
Kulungiswe ngomhla ka-: ULwesihlanu, Juni 4, 2021 ngo-16:58
Uma isisebenzi senza iwashi singene noma sivale idivayisi, sizobonisa ngezansi kwesixhumi esibonakalayo sesimo nesikhathi sokushaya. Abasebenzi bangakhetha ukhiye wokusebenza okhonjwe umcibisholo obomvu futhi babuke amarekhodi.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Ukuvumela Kanjani Ukutholwa Kwemaski? 06/11/2021
Idalwe ngu: Chalice Li
Kulungiswe ngomhla ka-: ULwesihlanu, Juni 7, 2021 ngo-17:58
Isinyathelo1: Iya kumenyu yohlelo lokusebenza ngokusebenzisa imenyu ethuthukisiwe
Isinyathelo sesi-2: Iya kumenyu yeMask
Isinyathelo sesi-3: Umsebenzi wokuthola imaski unganikwa amandla ngaphansi kwale menyu. Umlawuli angasetha umsebenzi wokuyekwa kwemaski njenge-alamu kuphela noma injongo yokulawula ukufinyelela.
Qaphela: Ungaphinda ulungiselele isicupho se-alamu kumenyu yemaski.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Ngingakwazi Ukumisa I-Alarm Trigger lapho Umsebenzisi Enomkhuhlane noma Engasebenzisi Imaski? 06/11/2021
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: Msombuluko, Juni 7, 2021 ngo-17:58
Isinyathelo1: Iya kumenyu yohlelo lokusebenza ngokusebenzisa imenyu ethuthukisiwe
Isinyathelo sesi-2: Iya kumenyu ye-thermometry
Isinyathelo sesi-3: Setha i-alamu yomkhuhlane kumenyu yezinga lokushisa
Isinyathelo sesi-4: Setha i-alamu yemaski kumenyu yemaski
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: Msombuluko, Juni 7, 2021 ngo-17:58
Yebo, wethu FaceDeepI-3 IRT inemodi yesivakashi, izivakashi zinganikezwa ukufinyelela kule modi ngezinga lokushisa elijwayelekile futhi zisebenzisa imaski ngokuya ngokucushwa okukhethile. Ngezansi umhlahlandlela, ungayishintsha kanjani imodi yomsebenzi?
Isinyathelo1: Iya kumenyu yohlelo lokusebenza ngokusebenzisa imenyu ethuthukisiwe
Isinyathelo sesi-2: Iya kumenyu ye-thermometry
Isinyathelo sesi-3: Ngena kumodi yokusebenza
Isinyathelo sesi-4: Imodi yomsebenzi ingashintshwa kule menyu
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: Msombuluko, Juni 7, 2021 ngo-16:58

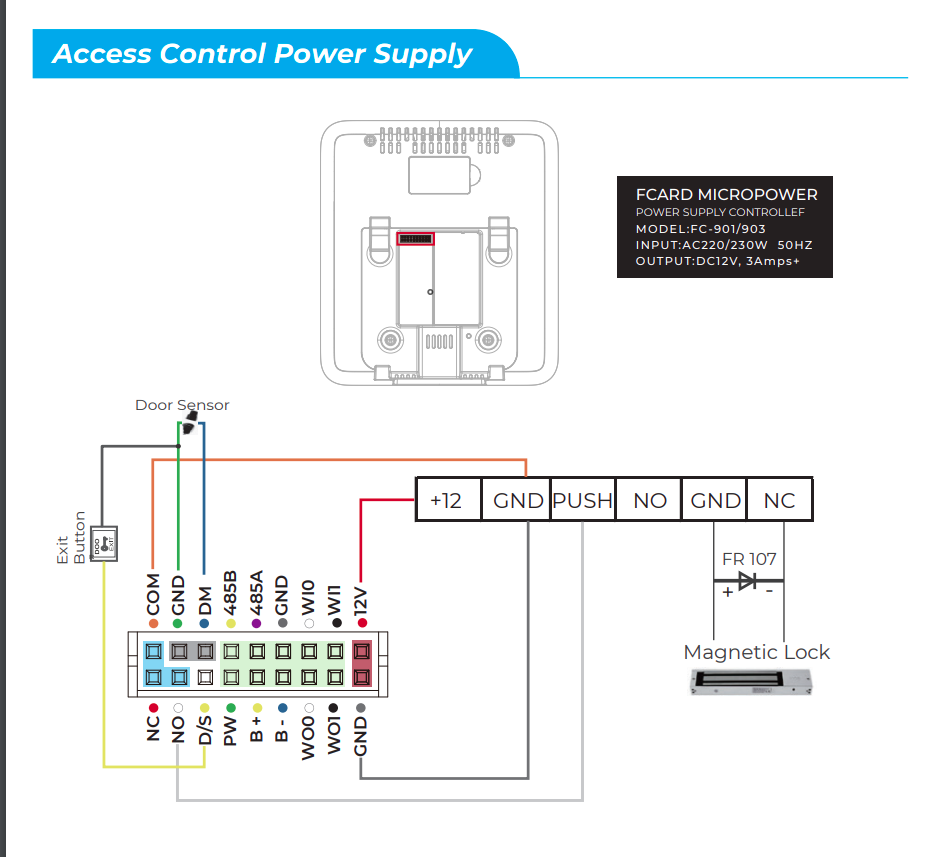

Sicela ubheke umhlahlandlela wethu wokufaka ukuze ubone imiyalelo yezintambo zokuxhuma FaceDeep 3 Uchungechunge olunamasistimu okulawula ukufinyelela. https://www.anviz.com/file/download/6565.html
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: Msombuluko, Juni 7, 2021 ngo-16:58
Our FaceDeepI-3 ayiyona idivayisi engangeni manzi, asiphakamisi ikhasimende ukuthi liyifake kunoma yiziphi izindawo ezingaphandle.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: Msombuluko, Juni 7, 2021 ngo-16:58
Uma ubuso bakho sebubhalisiwe, awudingi ukuthinta idivayisi ukuze urekhodwe. Ungabhalisa ubuso bakho ngeMenu yedivayisi noma ngeseva yewebhu, CrossChex Standard or CrossChex Cloud.
Wonke amarekhodi azogcinwa ngokuzenzakalelayo kudivayisi, umkhawulo ungafinyelela kumalogi angu-100,000.
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
-
Inembe Kangakanani Inzwa Yezinga Lokushisa? 06/08/2021
Idalwe ngu: Chalice Li
Kushintshwe ngomhla ka-: Msombuluko, Juni 7, 2021 ngo-16:58
Our FaceDeepI-3 IRT inenzwa yokunemba okuphezulu, iphutha eliphelele lincane kuno-+/- 0.3ºC (0.54ºF ).
Sicela usithumelele i-imeyili support@anviz.com uma unemibuzo!
Anviz Ithimba lezobuchwepheshe
ekhoneni elingakwesokudla Ilogo yefu izonyamalala;
