FaceDeep 3
I-AI eSekwe kwi-Smart Face Recognition kunye ne-RFID Terminal
FaceDeep I-3 Series sisizukulwana esitsha sokuqhagamshelwa kwe-AI-based based recognition terminal exhotyiswe nge-CPU engundoqo kunye ne-Linux eEmbedded kunye nentsha BioNANO® i-algorithm yokufunda nzulu. FaceDeep Ii-series ezi-3 zixhasa ubuninzi ukuya kutsho kuma-6,000 oovimba beenkcukacha obuguquguqukayo kwaye banokufikelela kwixesha elitsha lokufunda ngobuso elingaphantsi ko-1 kunye nexesha elingaphantsi kwe-300ms lokuqaphela ubuso ngo-1:6,000. FaceDeepI-3 ixhobisa i-5" IPS i-angle epheleleyo yesikrini sokuchukumisa. FaceDeepI-3 inokuqonda ukubonwa kobomi bokwenyani ukunqanda ubuso bobuxoki kwiifoto kunye neevidiyo.
-
Iimbonakalo
-
1GHz Linux Based Prosesa
I-Linux entsha esekwe kwi-1Ghz iprosesa iqinisekisa ixesha lokuthelekisa i-1: 10,000 ngaphantsi kwe-0.3 yesibini. -
Unxibelelwano lwe-Wi-Fi Flexible
Umsebenzi we-Wi-Fi unokuqonda unxibelelwano olungenazingcingo oluzinzileyo kwaye uqaphele ukufakwa okuguquguqukayo kwezixhobo. -
Ukufunyanwa kobuso obuphilayo
Ukuqondwa kobuso obuphilayo ngokusekwe kwi-infrared kunye nokukhanya okubonakalayo. -
Ikhamera ebanzi yeAngle
Ikhamera ye-120 ° ultra-wide-angle inika amandla ukuqaphela ubuso okukhawulezayo. -
IPS Isikrini esigcweleyo
Isikrini se-IPS esinemibala siqinisekisa intsebenziswano engcono kunye namava omsebenzisi kwaye sinokubonelela ngezaziso ezicacileyo kubasebenzisi. -
Umncedisi weWebhu
Iseva yewebhu iqinisekisa uqhagamshelo olukhawulezayo olukhawulezayo kunye nolawulo lobuqu lwesixhobo. -
Cloud Application
Usetyenziso lwelifu olusekwe kwiwebhu lukuvumela ukuba ufikelele kwisixhobo nangayiphi na i-terminal ephathwayo nanini na naphi na.
-
-
Specification
isikhundla imodeli
FaceDeep 3
FaceDeep 3 Pro
FaceDeep I-3 4G
umsebenzisi
6,000 6,000 6,000 ikhadi
6,000 6,000 6,000 Ngena
100,000 ujongano TCP / IP √ RS485 √ Wi-Fi √ - - I-Wi-Fi + yeBluetooth - √ - 4G - - √ Ukubuyisela 1 Relay Out I-Alarm yomsindo √ Wiegand 1 ngaphakathi / 1 ngaphandle Uqhagamshelwano lomnyango √ ngokubanzi Indlela yokuchonga Ubuso, Ikhadi, i-ID+Igama lokugqithisa Umgama woKubonwa kobuso 0.5~1.5m (19.69~59.06”) Isantya soKwamkeleka kobuso <0.3 S Itekhnoloji yeRFID 125KHz EM
13.56 MHz Mifare
13.56 MHz Mifare
itheko Ixesha lokuzimasa Imowudi 8 Iqela, uMmandla weXesha Amaqela okufikelela ali-16, uMmandla weXesha angama-32 WebServer √ Record Auto Inquiry √
Ukukhawuleza kwelizwi √ Bell Clock √ Ulwimi oluNinzi √ isibulali ICPU
Dual 1.0 GHz IiKhamera
Iikhamera ezimbini (VIS & NIR) Indawo yokuskena Ukuthe tye: ±20° nkqo: ±20° Bonisa 5" TFT Touch Screen Resolution 640*480 I-LED efanelekileyo inkxaso Imilinganiselo(W x H x D) 14.6*16.5*3.4 cm 5.75*6.50*1.34” ngamaqondo ukusebenza -5℃~60℃ 23℉~160℉ ukufuma 0% ukuya 95% Ukufakelwa kwamandla DC 12V 2A Ukuhambelana kweSoftware CrossChex Standard
√
CrossChex Cloud
√ -
isicelo
Related Download
- Incwadana 11.2 MB
-
Anviz FaceDeep3 Series Incwadana
08/18/2022
11.2 MB
- Incwadana 13.2 MB
-
2022_Ulawulo loFikelelo kunye nexesha kunye nezisombululo zokuzimasa_En(iphepha elinye)
02/18/2022
13.2 MB
- Incwadana 13.0 MB
-
2022_Ulawulo loFikelelo kunye nexesha kunye nezisombululo zokuya kwiZisombululo_En(ifomathi esasazeka)
02/18/2022
13.0 MB
- ngezandla 1.9 MB
-
FaceDeep3_Series_QuickGuide_EN
08/04/2021
1.9 MB
Faq ezinxulumeneyo
-
Ubhalisa njani uMsebenzisi kwi FaceDeep 3? 06/11/2021
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Tue, Juni 1st 2021 ngo-10:20
Kukho iindlela ezimbini zokubhalisa abasebenzisi. Unokwenza ubhaliso olukhawulezayo ngokubhalisa ubuso (A). Ukuba ufuna ukwenza ubhaliso oluneenkcukacha, nceda uye kuMsebenzisi, kwaye wongeze umsebenzisi(B) phantsi kwale menyu.
A.) Bhalisa ubusoB.) Yongeza umsebenzisi
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa -
Iyilwe ngu: Chalice Li
Ilungiswe ngo: NgoLwesihlanu, nge-4 kaJuni 2021 ngo-11:58
Inyathelo1: Faka imenyu yenethiwekhi ukusuka kwimenyu ephambili
Inyathelo2: Seta imowudi ye-WAN njenge-WIFI
Inyathelo3: Yiya kwimenyu yeWifi, gqibezela imowudi ye-wifi IP yakho kwaye ukhangele i-wifi yakho.
Inyathelo lesi-4: Sebenzisa i CrossChex isoftwe yokongeza isixhobo. Unokukhangela isixhobo okanye ufake ngesandla idilesi ye-IP yesixhobo kwindlela ye-LAN phantsi koseto lwesixhobo.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Tue, Juni 1st 2021 ngo-16:12
Ukuthoba okanye ukuphucula i-firmware ekhethekileyo ye FaceDeep 3 /FaceDeep 3 IRT izixhobo, kufuneka unyanzelise uphuculo lwe FaceDeep 3 Series nge-USB Flash Drive.
Amanyathelo eenkcukacha angezantsi:
Inyathelo 1: Nceda ulungiselele i-USB Flash Drive enefomati yeFAT kunye nomthamo ongaphantsi kwe-8GB.
Inyathelo 2: Khuphela ifayile ye-firmware kwi-USB Flash Drive kwaye uqhagamshele i-USB Flash Drive kwi FaceDeep Izibuko le-USB le-3.
Inyathelo lesi-3: Cwangcisa FaceDeep 3 Series ukunyanzelisa firmware imo yophuculo.
Ngena kwisixhobo eyona menu, nqakraza izicwangciso kwaye ukhethe Gqiba.
Nceda ucofe ngokukhawuleza i "USB Disk" icon kwi FaceDeep 3 isikrini nge (10-20 amaxesha) de popup i Gqiba Inombolo yokuvula ujongano lwegalelo.
Ngenisa i-"12345" kwaye ucofe u-"Enter" ukuze Uphuculo olunyanzelweyo! Cofa "Qala" ukuphucula i-firmware. (Nceda uqinisekise i-USB Flash Drive sele iplage kwisixhobo.)
Emva kokuphucula i-firmware nceda uqalise kwakhona isixhobo kwaye ujonge i I-Kernel Ver. ku basic Info is gf561464 ukuqinisekisa ukuba uphuculo luyimpumelelo. Ukuba akunjalo nceda ujonge amanyathelo okusebenza kwaye uphucule i-firmware kwakhona.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa -
Iyilwe ngu: Felix Fu
Ilungiswe ngo: Wed, 3 Juni 2021 ngo-20:44
Nceda uqinisekise i Anviz isixhobo sele siqhagamshelwe kwi-intanethi kwaye siqhagamshelwe nge CrossChex Cloud akhawunti phambi kokuba uqhagamshele isixhobo kuyo CrossChex Cloud Inkqubo. Ukuba awuyazi indlela yokwenza isixhobo kwi-intanethi, nceda ujonge i-FAQ ngendlela yokuqhagamshela isixhobo FaceDeep 3.
Nje ukuba ulungiselelo lwenethiwekhi lulungile, sinokuqhubeka nokuseta uqhagamshelo lwamafu.
Inyathelo1: Yiya kwiphepha lolawulo lwesixhobo (beka umsebenzisi:0 PW: 12345, emva koko ulungile) ukukhetha inethiwekhi.
Inyathelo2: Khetha Cloud iqhosha.
Inyathelo3:Faka uMsebenzisi kunye nePassword efanayo nakwiNkqubo yeLifu, iKhowudi yeLifu, kunye nephasiwedi yelifu.
Qaphela: Ungafumana ulwazi lweakhawunti yakho kwinkqubo yakho yelifu njengomfanekiso ongezantsi, ikhowudi yelifu yi-id yeakhawunti yakho, igama lokugqitha lelifu yiakhawunti yakho yokugqitha.
Inyathelo lesi-4: Khetha iseva
I-US-Iseva: Iseva yeHlabathi liphela: https://us.crosschexcloud.com/
Iseva ye-AP: Iseva ye-Asia-Pacific: https://ap.crosschexcloud.com/
Inyathelo lesi-5: Uvavanyo lweNethiwekhi
Qaphela: Emva kwesixhobo kunye CrossChex Cloud zidibene, i kwikona yasekunene ilogo yelifu iya kunyamalala;
Nje ukuba isixhobo sidibane ne CrossChex Cloud ngempumelelo, i icon yesixhobo iya kulayita.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa -
Iyilwe ngu: Chalice Li
Ilungiswe ngo: NgoLwesihlanu, nge-4 kaJuni 2021 ngo-15:58
Inyathelo1: Faka imenyu yenethiwekhi ukusuka kwimenyu ephambili
Inyathelo2: Seta imowudi ye-WAN njenge-Ethernet
Inyathelo lesi-3: Yiya kwimenyu ye-Ethernet, gqibezela imowudi ye-Ethernet ip yakho, iDHCP okanye i-static ixhomekeke kulungiselelo lwenethiwekhi yendawo.
Inyathelo lesi-4: Sebenzisa i CrossChex isoftwe yokongeza isixhobo. Unokukhangela isixhobo okanye ufake ngesandla idilesi ye-IP yesixhobo kwindlela ye-LAN phantsi koseto lwesixhobo.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Uzijonga njani iiRekhodi FaceDeep 3? 06/11/2021
Iyilwe ngu: Chalice Li
Ilungiswe ngo: NgoLwesihlanu, nge-4 kaJuni 2021 ngo-16:58
Xa umsebenzi esenza i-clock-in okanye i-clock-out kwisixhobo, iya kubonisa ngezantsi kojongano lobume kunye nexesha lepunch. Abasebenzi banokukhetha isitshixo somsebenzi esikhonjwe ngotolo olubomvu kunye neerekhodi zokujonga.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Unokwenza njani ukuFumana imaski? 06/11/2021
Iyilwe ngu: Chalice Li
Ilungiswe ngo: NgoLwesihlanu, nge-7 kaJuni 2021 ngo-17:58
Inyathelo1: Yiya kwimenyu yesicelo ngokusebenzisa imenyu ephezulu
Inyathelo2: Yiya kwiMask menu
Inyathelo lesi-3: Umsebenzi wokubona imaski unokwenziwa phantsi kwale menyu. Umlawuli unokuseta umsebenzi wokuhlambalaza imaski njenge-alam kuphela okanye injongo yokulawula ukufikelela.
Qaphela: Ungaqwalasela kwakhona isivusi kwimenyu yemaski.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Ngaba ndingaQwalasela i-Alarm Trigger xa uMsebenzisi enomkhuhlane okanye engasebenzisi imaski? 06/11/2021
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Mvulo, nge-7 kaJuni 2021 ngo-17:58
Inyathelo1: Yiya kwimenyu yesicelo ngokusebenzisa imenyu ephezulu
Inyathelo2: Yiya kwimenyu ye-thermometry
Inyathelo lesi-3: Seta i-alamu yomkhuhlane kwimenyu yobushushu
Inyathelo lesi-4: Seta ialam yemaski kwimenyu yemaski
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Mvulo, nge-7 kaJuni 2021 ngo-17:58
Ewe, wethu FaceDeepI-3 IRT inemowudi yendwendwe, iindwendwe zinokuvunyelwa ukufikelela kule ndlela kunye nobushushu obuqhelekileyo kunye nokusebenzisa imaski ngokobumbeko olukhethileyo. Ngezantsi isikhokelo, indlela yokutshintsha indlela yokusebenza?
Inyathelo1: Yiya kwimenyu yesicelo ngokusebenzisa imenyu ephezulu
Inyathelo2: Yiya kwimenyu ye-thermometry
Inyathelo 3: Ngena kwindlela yokusebenza
Inyathelo lesi-4: Imo yokusebenza ingatshintshwa kule menyu
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Mvulo, nge-7 kaJuni 2021 ngo-16:58

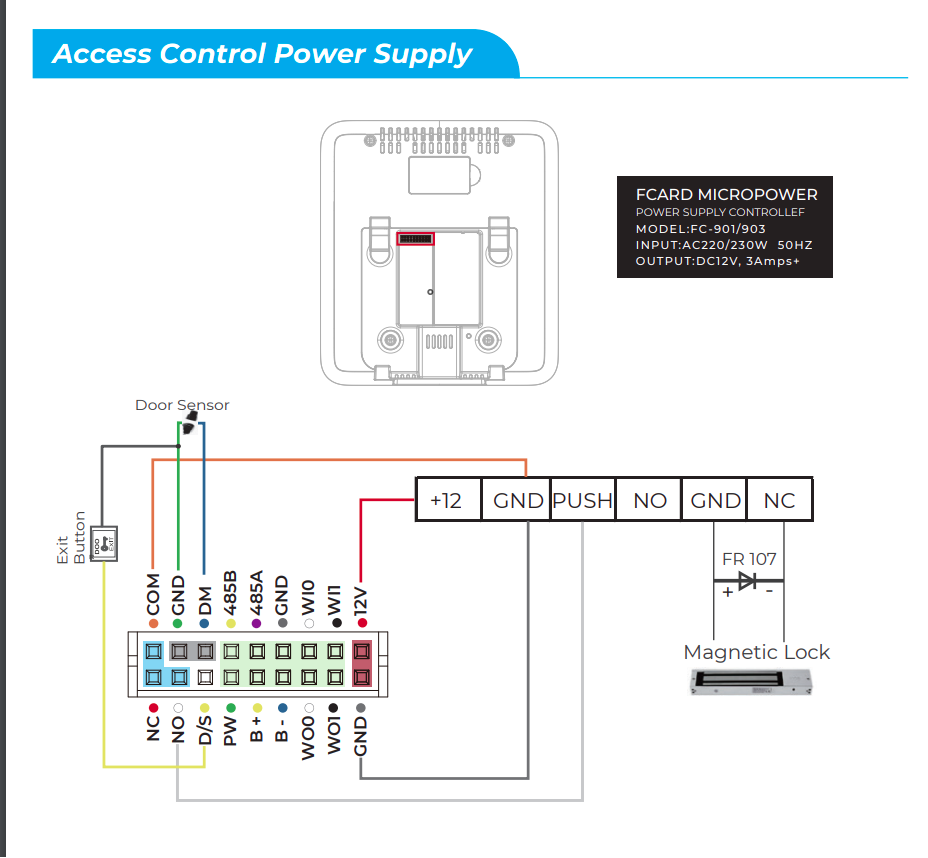

Nceda ubhekiselele kwisikhokelo sethu sofakelo ukuze ubone imiyalelo yocingo ukuze uqhagamshele FaceDeep I-3 Series eneenkqubo zokulawula ukufikelela. https://www.anviz.com/file/download/6565.html
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Mvulo, nge-7 kaJuni 2021 ngo-16:58
yethu FaceDeepI-3 ayisosixhobo esingangeni manzi, asicebisi umthengi ukuba ayifake kuyo nayiphi na indawo yangaphandle.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Mvulo, nge-7 kaJuni 2021 ngo-16:58
Nje ukuba ubuso bakho bubhalisiwe, awudingi ukubamba isixhobo ukuze urekhodwe. Ungabhalisa ubuso bakho ngeMenu yesixhobo okanye ngomncedisi wewebhu, CrossChex Standard or CrossChex Cloud.
Zonke iirekhodi ziya kugcinwa ngokuzenzekelayo kwisixhobo, ubuninzi bunokufikelela kwii-logs ze-100,000.
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
-
Ichaneke kangakanani iSensom yobushushu? 06/08/2021
Iyilwe ngu: Chalice Li
Ilungiswe ngo: Mvulo, nge-7 kaJuni 2021 ngo-16:58
yethu FaceDeepI-3 IRT inenzwa yokuchaneka okuphezulu, impazamo epheleleyo incinci kune +/- 0.3ºC (0.54ºF).
Nceda imeyile ku support@anviz.com ukuba unayo nayiphi na imibuzo!
Anviz Iqela leNkxaso Yezobugcisa
kwikona yasekunene ilogo yelifu iya kunyamalala;
