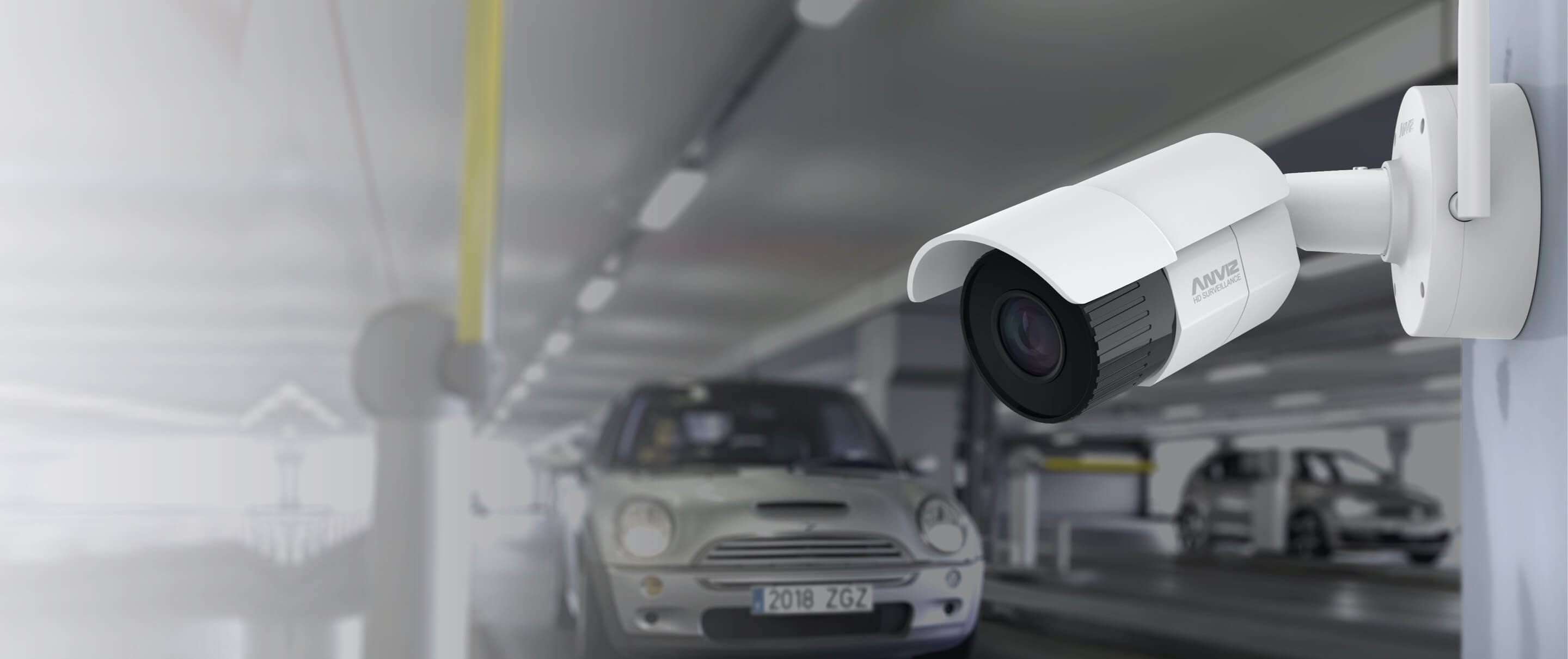

iCam-B38Z is an outdoor bullet camera with 8MP/4K Ultra HD resolution and stylish design. The perfect combination of Intelligent Infrared and day/night function greatly improve the visibility effect in the dark and low-light environments. The 3X motorized lens can clearly auto adjust the images within 50 meters range. The IP66 design ensures you the flexbile installation in the outdoor environment. The iCam-B3 series supports standard H.264/H.265 and also the stanard onvif protocol. The optional WiFi Model(-W) or 4G Model(-G) offers wireless communication and easily setup. The edge storage SD card slot can support up to 128GB micro SD card. The device has built-in person detection and vehicle detection functions and you can easily get event alarm from the Intellisight mobile APP.
Person Detection Vehicle Detection| Model |
iCam-B38Z |
iCam-B38ZW (WIFI Model-Coming Soon) |
iCam-B38ZG (4G Model-Coming Soon) |
|---|---|---|---|
| Camera | |||
| Image Sensor | 1/1.8" 8 Megapixel Progressive Scan CMOS | ||
| Max. Resolution | 3840(H)x2160(V) | ||
| Shutter Time | 1/12s ~ 1/10000s | ||
| Minimum Illumination | Color: 0.005Lux @(F1.2,AGC ON) B/W: 0Lux @(IR LED ON) | ||
| Day/Night | IR-CUT with Auto Switch/Scheduled | ||
| WDR | HDR | ||
| BLC | Support | ||
| Lens | |||
| Mount Type | Fixed M12 | ||
| Focal Length | 3.6mm-10mm (0.14-0.39") zoom lens with DC-IRIS | ||
| Aperture | F1.5(W)~F2.8(T) | ||
| FOV | 99°~42°(H) | ||
| Iris Type | DC-IRIS | ||
| Illuminator | |||
| IR Range | Up to 50m (1968.5") | ||
| Wavelength | 850 nm | ||
| Audio | |||
| Audio Compression | G.711, G.726, AAC-LC | ||
| Audio Type | Mono | ||
| Audio Capability | Environmental Noise Filter, Echo Cancellation, Two-way Audio | ||
| Video | |||
| Video Compression | H.264, H.265 | ||
| Video Bit Rate | 512kbps ~ 16mbps | ||
| Resolution | Main Stream (3840*2160, 2560*1440, 1920*1080, 1280*720) | ||
| Sub Stream (1920*1080, 1280*720, 704*576, 640*480) | |||
| Third Stream (1280*720, 704*576, 640*480) | |||
| Region of Interest (ROI) | 4 Fixed Regions for Each Stream; Target Cropping of Third Stream | ||
| Image | |||
| Image Setting | Saturation, Brightness, Contrast, Sharpness, Auto white balance | ||
| Image Enhancement | Lens Distortion Correction, Defog, 2D/3D DNR | ||
| S/N Ratio | 39dB | ||
| Dynamic Range | >74dB | ||
| Others | OSD, Image Flip,Picture Overlay | ||
| Smart Events | |||
| Video Analytics | Defocus Detection, Scene Change Detection,Occlusion Detection | ||
| Smart Events | Intrusion Detection,Line Crossing Detection,Region Entrance Detection,Region Exiting Detection,Loitering Detection | ||
| Deep Learning Events | Vehicle Detection,Face & Pedestrian Detection | ||
| Network | |||
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,IPv4,IPv6 | ||
| Compatibility | ONVIF, GB28181, CGI API | ||
| Management | IntelliSight cloud, IntelliSight mobile | ||
| 4G | |||
| Frequency | / | / | TE-TDD: Band34/38/39/40/41; LTE-FDD: Band1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66; GSM: 850MHz/ 900MHz/ 1800MHz/ 1900MHz; WCDMA: Band1/2/4/5/6/8/19 |
| Standard | / | / | LTE-TDD , LTE-FDD,GSM, WCDMA |
| Interface | |||
| Ethernet | 1 RJ45 (10/100/1000Mbps) | ||
| WIFI | / | IEEE 802.11 b/g/n | / |
| Storage | Built-in MicroSD/SDHC/SDXC Slot, up to 128 GB | ||
| Alarm | 1 input, 1 output | ||
| Audio | External 1 line in, External 1 line out | ||
| Key | Reset Button | ||
| General | |||
| Power Supply | DC12V 1A/POE (IEEE 802.3af) | ||
| Power Consumption | <12W | ||
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), Humidity: 10% to 90% (No Condensation) | ||
| Weather Proof | IP66 | ||
| Certifications | CE, FCC, RoHS | ||
| Net Weight | 2.8KGS | ||
| Dimensions | Φ120*303mm (Φ4.72*11.93") | ||
