FaceDeep 3
AI Yakavakirwa Smart Face Recognition uye RFID Terminal
FaceDeep 3 Series ndiyo chizvarwa chitsva chisingabatanidzi AI-based face recognition terminal ine mbiri mbiri CPU uye Embedded Linux neazvino. BioNANO® yakadzika kudzidza algorithm. FaceDeep 3 yakatevedzana inotsigira huwandu hunosvika 6,000 ane simba kumeso dhatabhesi uye inogona kusvika iri pasi pe1s itsva yekudzidza yechiso nguva uye iri pasi pe300ms yekuzivikanwa kumeso nenguva na1:6,000. FaceDeep3 inoshongedza 5" IPS yakazara angles yekubata sikirini. FaceDeep3 inogona kuona yechokwadi hupenyu hwekuona kudzivirira zviso zvekunyepedzera kubva kumifananidzo nemavhidhiyo.
-
Features
-
1GHz Linux Yakavakirwa processor
Iyo itsva Linux yakavakirwa 1Ghz processor inovimbisa iyo 1:10,000 yekuenzanisa nguva isingasviki 0.3 sekondi. -
Wi-Fi Flexible Kukurukurirana
Wi-Fi basa rinogona kuona yakagadzikana isina waya kutaurirana uye kuona inochinjika kuisirwa kwemidziyo. -
Liveness Face Detection
Rarama kuzivikanwa kwechiso kunobva pane infrared uye mwenje unooneka. -
Wide Angle Kamera
Iyo 120 ° yekupedzisira-yakafara-ekona kamera inogonesa kukurumidza kuzivikanwa kwechiso. -
IPS Full Screen
Iyo ine mavara IPS skrini inova nechokwadi chekudyidzana kwakanyanya uye ruzivo rwevashandisi uye inogona kupawo zviziviso zvakajeka kune vashandisi. -
Webhu Server
Iyo webhu server inovimbisa kukurumidza kukurumidza kubatana uye kuzvitonga pachako kwemudziyo. -
Cloud Application
Iyo yewebhu yakavakirwa gore application inokutendera iwe kuti uwane kune mudziyo nechero mobile terminal kubva chero nguva uye chero kupi.
-
-
Specification
chinzvimbo mhando
FaceDeep 3
FaceDeep 3 Pro
FaceDeep 3 4 XNUMXG
mushandisi
6,000 6,000 6,000 kadhi
6,000 6,000 6,000 Logisi
100,000 inowanikwa TCP / IP √ RS485 √ Wi-Fi √ - - Wi-Fi + Bluetooth - √ - 4G - - √ Relay 1 Relay Out Temper Alarm √ Wiegand 1 mukati / 1 Kunze Door Contact √ General Chitupa Mode Face, Kadhi, ID+Pasiwedhi Face Recognition Distance 0.5 ~ 1.5m ( 19.69 ~ 59.06” ) Face Recognition Speed <0.3 S Nhoroondo ye RFID Technology 125KHz EM
13.56 MHz Mifare
13.56 MHz Mifare
basa Nguva Yekupinda Mode 8 Boka, Nguva Yenguva 16 Mapoka Ekupinda, 32 Nguva Yenguva WebServer √ Rekodha Auto Inquiry √
Voice Prompt √ Clock Bell √ Mitauro Yakawanda √ Hardware CPU
Diki 1.0 GHz Cameras
Dual Camera ( VIS & NIR ) Scanning Area Yakakanuka: ± 20° Yakatwasuka: ± 20° kuratidza 5" TFT Bata Screen Resolution 640*480 Akatungamirira akatungamirira tsigira Zviyero(W x H x D) 14.6*16.5*3.4 cm 5.75*6.50*1.34” kushanda Temperature -5℃~60℃ 23℉~160℉ unyoro 0% kuti 95% Power Input DC 12V 2A Software Kuenderana CrossChex Standard
√
CrossChex Cloud
√ -
kunyoresa
Related Download
- Bhurocha 11.2 MB
-
Anviz FaceDeep3 Series Bhurocha
08/18/2022
11.2 MB
- Bhurocha 13.2 MB
-
2022_Kupinda Kudzora & Nguva uye Kupinda Solutions_En(Peji rimwechete)
02/18/2022
13.2 MB
- Bhurocha 13.0 MB
-
2022_Kupinda Kudzora & Nguva uye Kupinda Solutions_En (Spread fomati)
02/18/2022
13.0 MB
- manyuwari 1.9 MB
-
FaceDeep3_Series_QuickGuide_EN
08/04/2021
1.9 MB
Related Faq
-
Maitiro ekunyora mushandisi pa FaceDeep 3? 06/11/2021
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi wa: Tue, June 1st 2021 na10:20
Pane nzira mbiri dzekunyoresa vashandisi. Iwe unogona kuita kukurumidza kunyoresa nekunyoresa kumeso (A). Kana iwe uchida kuita zvakadzama kunyoresa, ndapota enda kuMushandisi, uye wedzera mushandisi(B) pasi pemenyu iyi.
A.) Nyoresa chisoB.) Wedzera mushandisi
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team -
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Fri, June 4th 2021 na11:58
Step1: Pinda iyo network menyu kubva kune huru menyu
Step2: Seta WAN modhi seWIFI
Step3: Enda kune iyo Wifi menyu, pedzisa yako wifi IP mode kuseta uye tsvaga yako wifi.
Nhanho 4: Shandisa iyo CrossChex software yekuwedzera mudziyo. Unogona kutsvaga mudziyo kana kuisa kero IP kero muLAN nzira pasi pekuseta mudziyo.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi wa: Tue, June 1st 2021 na16:12
Kudzikisira kana kusimudzira yakakosha firmware ye FaceDeep 3 /FaceDeep 3 IRT zvishandiso, iwe unofanirwa kumanikidza kukwidziridzwa kwe FaceDeep 3 Series ne USB Flash Drive.
Details nhanho sezviri pazasi:
Danho 1: Ndokumbira ugadzirire USB Flash Drive ine FAT fomati uye huwandu husingasviki 8GB.
Danho 2: Kopa firmware faira ku USB Flash Drive uye plug iyo USB Flash Drive kune iyo FaceDeep 3's USB port.
Danho rechitatu: Setup FaceDeep 3 Series yekusimbisa firmware yekusimudzira maitiro.
Pinda mumudziyo kuru Menu, baya Settings uye sarudza Update.
Ndokumbira nekukurumidza tinya iyo "USB Disk" icon mune iyo FaceDeep 3 skrini ine (10-20 nguva) kusvika yabuda iyo Update Pasiwedhi input interface.
Isa "12345" uye tinya "Pinda" kuti Kumanikidzwa kusimudzira maitiro! Dzvanya "Start" kuti ndiwedzere firmware. (Ndapota ita shuwa kuti USB Flash Drive yato plug mumudziyo.)
Mushure mekusimudzira firmware ndapota tangazve mudziyo uye tarisa iyo Kernel Ver. kubva Basic Info is gf561464 kuve nechokwadi kuti kukwidziridzwa kwabudirira. Kana zvisina kudaro, tarisa matanho ekushanda uye uvandudze firmware zvakare.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team -
Yakagadzirwa na: Felix Fu
Yakagadziridzwa musi wa: Wed, June 3rd 2021 na20:44
Ndapota iva nechokwadi chokuti Anviz mudziyo wakatobatana neinternet uye wakabatana nea CrossChex Cloud account usati wabatanidza mudziyo CrossChex Cloud System. Kana iwe usingazive kugadzira mudziyo pamhepo, ndapota tarisa iyo FAQ yekuti ungabatanidza sei mudziyo pa FaceDeep 3.
Kana iyo network kuseta zvese zvakanaka, isu tinogona kuenderera neiyo cloud connection setup.
Step1: Enda kune peji manejimendi peji (isa mushandisi: 0 PW: 12345, wobva waita zvakanaka) kusarudza network.
Step2: Sarudza Cloud bhatani.
Nhanho 3:Input User uye Password iyo yakafanana neye Cloud System, Cloud Code, uye Cloud Password.
Ongorora: Unogona kuwana ruzivo rweakaundi yako kubva kune yako cloud system sepazasi mufananidzo, cloud code ndiyo id account yako, cloud password ndiyo password account yako.
Step4: Sarudza sevha
US - Server: Worldwide Server: https://us.crosschexcloud.com/
AP-Server: Asia-Pacific Server: https://ap.crosschexcloud.com/
Danho 5: Network Test
Cherechedza: Mushure memudziyo uye CrossChex Cloud akabatana, a pakona yekurudyi Cloud logo ichanyangarika;
Kamwe mudziyo unobatanidza ne CrossChex Cloud zvinobudirira, mudziyo icon ichavhenekerwa.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team -
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Fri, June 4th 2021 na15:58
Step1: Pinda iyo network menyu kubva kune huru menyu
Step2: Seta WAN modhi seEthernet
Step3: Enda kuEthernet menyu, pedzisa yako Ethernet ip mode kuseta, DHCP kana static zvinoenderana nekwauri kurongeka network.
Nhanho 4: Shandisa iyo CrossChex software yekuwedzera mudziyo. Unogona kutsvaga mudziyo kana kuisa kero IP kero muLAN nzira pasi pekuseta mudziyo.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Fri, June 4th 2021 na16:58
Kana mushandi aita wachi-mukati kana wachi-kunze pachishandiso, icharatidza pazasi chimiro chechimiro nenguva yepunch. Vashandi vanogona kusarudza kiyi yebasa inonongedzwa nemuseve mutsvuku uye kuona marekodhi.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Maitiro ekugonesa Mask Detection? 06/11/2021
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Fri, June 7th 2021 na17:58
Step1: Enda kumenu yekushandisa kuburikidza nemenu yepamusoro
Step2: Enda kune Mask menyu
Step3: Mask yekuona basa rinogona kugoneswa pasi peiyi menyu. Iyo admin inogona kuseta mask detestion basa searamu chete kana yekuwana yekudzora chinangwa.
Ongorora: Unogona zvakare kugadzirisa alarm inokonzeresa mune mask menyu.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Ini Ndinogona Kugadzira Alarm Trigger kana Mushandisi ari Fivha kana Asingashandise Mask? 06/11/2021
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Muvhuro, Chikumi 7, 2021 na17:58
Step1: Enda kumenu yekushandisa kuburikidza nemenu yepamusoro
Nhanho 2: Enda kune iyo thermometry menyu
Danho rechitatu: Seta fever alarm mune tembiricha menyu
Step4: Seta masiki alarm mune mask menyu
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Muvhuro, Chikumi 7, 2021 na17:58
Ehe, zvedu FaceDeep3 IRT ine modhi yevashanyi, vashanyi vanogona kupihwa mukana mune iyi modhi neyakajairwa tembiricha uye kushandisa mask zvinoenderana nekumisikidzwa kwaunosarudza. Pazasi pane gwara, maitiro ekuchinja maitiro ebasa?
Step1: Enda kumenu yekushandisa kuburikidza nemenu yepamusoro
Nhanho 2: Enda kune iyo thermometry menyu
Danho rechitatu: Pinda mune yebasa mode
Step4: Iyo yebasa modhi inogona kuchinjika mune iyi menyu
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Muvhuro, Chikumi 7, 2021 na16:58

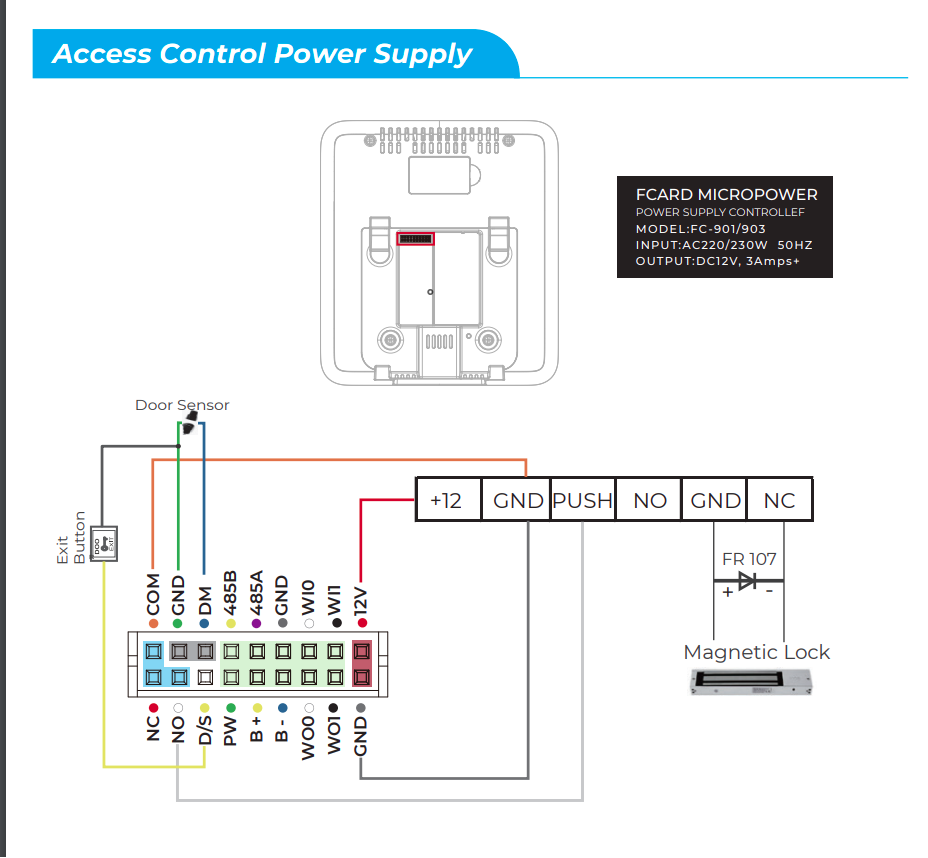

Ndokumbira utarise kune yedu yekuisa gwara kuti uone iyo wiring mirairo yekubatanidza FaceDeep 3 Series ine kuwana kudzora masisitimu. https://www.anviz.com/file/download/6565.html
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Muvhuro, Chikumi 7, 2021 na16:58
Our FaceDeep3 haisi mudziyo usingapindi mvura, hatikurudzire mutengi kuti aiise kune chero nzvimbo dzekunze.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Muvhuro, Chikumi 7, 2021 na16:58
Kana chiso chako chanyoreswa, haudi kubata mudziyo kuti urekotwe. Unogona kunyoresa chiso chako neMenu yekushandisa kana newebhu server, CrossChex Standard or CrossChex Cloud.
Ese marekodhi anozochengetwa otomatiki mumudziyo, iyo yepamusoro inogona kusvika kusvika ku100,000 matanda.
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
-
Yakarurama Sei Iyo Tembiricha Sensor? 06/08/2021
Yakagadzirwa na: Chalice Li
Yakagadziridzwa musi: Muvhuro, Chikumi 7, 2021 na16:58
Our FaceDeep3 IRT ine high accuracy sensor, iyo yakakwana kukanganisa idiki pane +/- 0.3ºC (0.54ºF).
Ndokumbira utumire tsamba ku support@anviz.com kana uine mibvunzo!
Anviz Technical Support Team
