TOUCHLESS
BEST PROTECTION THAN EVER
UltraMatch -S2000
Standalone Iris Recognition System
- User: 2000
- Identification Time: < 0.5s
- Biometrics FAR: 1:1,000,000
TOUCHLESS
Iris Recognition
When patient care is on the line, we care about you first!
UltraMatch-S2000
Standalone Iris Recognition System
- User: 2000
- Identification Time: < 0.5s
- Biometrics FAR: 1:1,000,000
TOUCHLESS
BEST PROTECTION THAN EVER
UltraMatch -S2000
Standalone Iris Recognition System
- User: 2000
- Identification Time: < 0.5s
- Biometrics FAR: 1:1,000,000

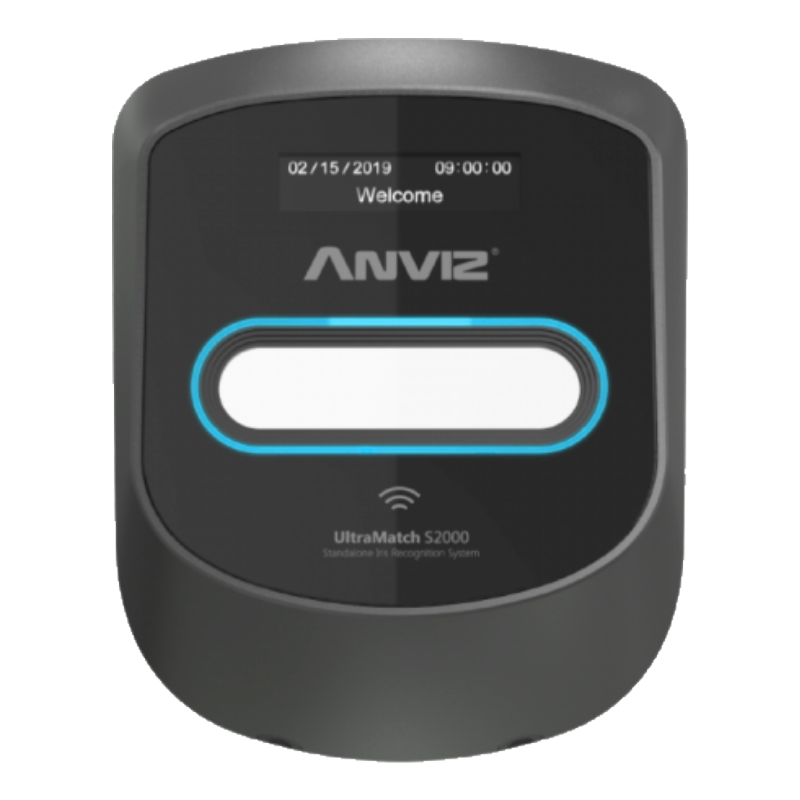

Ultra Match-Standalone Iris Recognition System
-
Utilizes the most accurate biometric recognition technology -
Color LED shows the proper verification distance -
Mobile management enabled by wireless connection
UltraMatch series products has a stylish design and reliable performance. Adopting BioNANO algorithm, the system provides the most accurate, stable, and quickest iris recognition while delivering high-level security in biometric enrollment, individual identification, and access control.
Iris recognition system can identify and authenticate users accurately and is not affected by outside environmental conditions.
A web based software and a PC version management software allow clients to manage the system easily. Iris SDK is available to developer and integrator for developing identity management applications or easy integration and expansions to existing security system.
Depending on its high accuracy, the terminal is ideal for high-level security applications, such as Border Protection, Pharmaceutical & Healthcare or Jails.

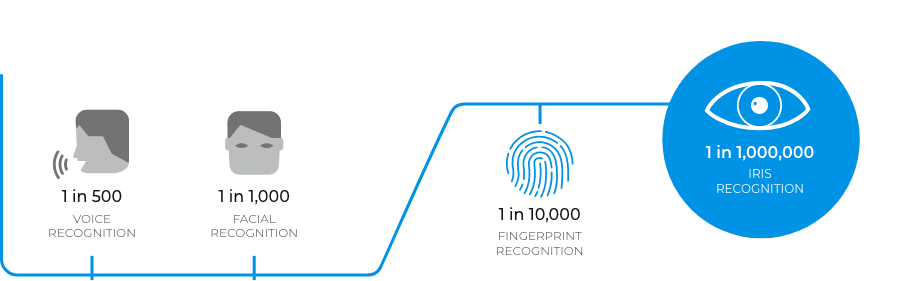

Accurate & Unforgettable
Iris recognition can accurately identify individuals using common biometric technologies. Even twins have completely independent iris textures. Iris patterns are unique and can not be duplicated.
Fast Identification
Anviz Iris recognition products use binocular recognition technology, which effectively solves the instability and randomness of traditional single-eye Iris recognition. It uses a high-speed interactive platform to achieve rapid recognition of less than 0.5 seconds per person.
Independent research and development
Live-tissue Verification' technique: By comparing the continuous iris images, it analyzes the changes of pupil to get the result.
Multiple authentication modes (left, right, either, or both eyes) for different security levels or particular requirement.
Glass reflex spot detection: Eliminate the spot re-flexed by glass and get clear and clean iris image.
Wide Adoption
Iris recognition is more suitable than other biometric identification in certain environments. If one has a worn or injured fingerprints or wear gloves, the UltraMatch is better than fingerprint devices.
The UltraMatch works in all lighting environments, from bright illumination to total darkness. The system supports all eye colors.
-
Brown
-
Blue
-
Green
The UltraMatch can identify subjects even when they are wearing eyeglasses, most sunglasses, most types of contact lenses, and even face masks.
-
Sunglasses
-
Glass
-
Veil
-
Mask

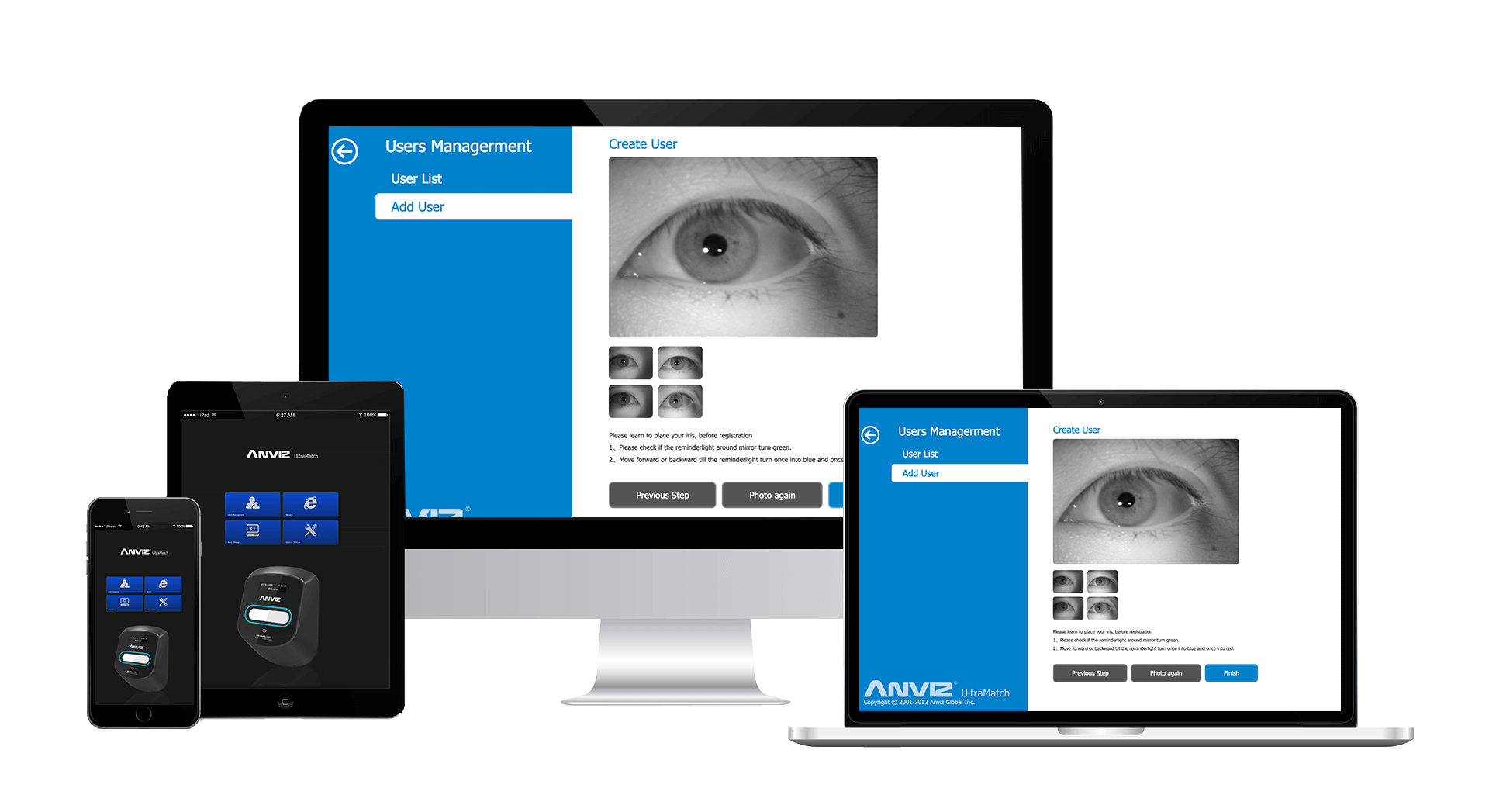

Mobile Management Enabled By Wireless Connection
S2000 can be managed by the mobile phone which no need to invest on complex system deployment and software installation in many temporary hospitals and other places.A web based software and a PC version management software allow clients to manage the system easily.
Meanwhile, Iris SDK is available to developer and integrator for developing identity management applications or easy integration and expansions to existing security system.

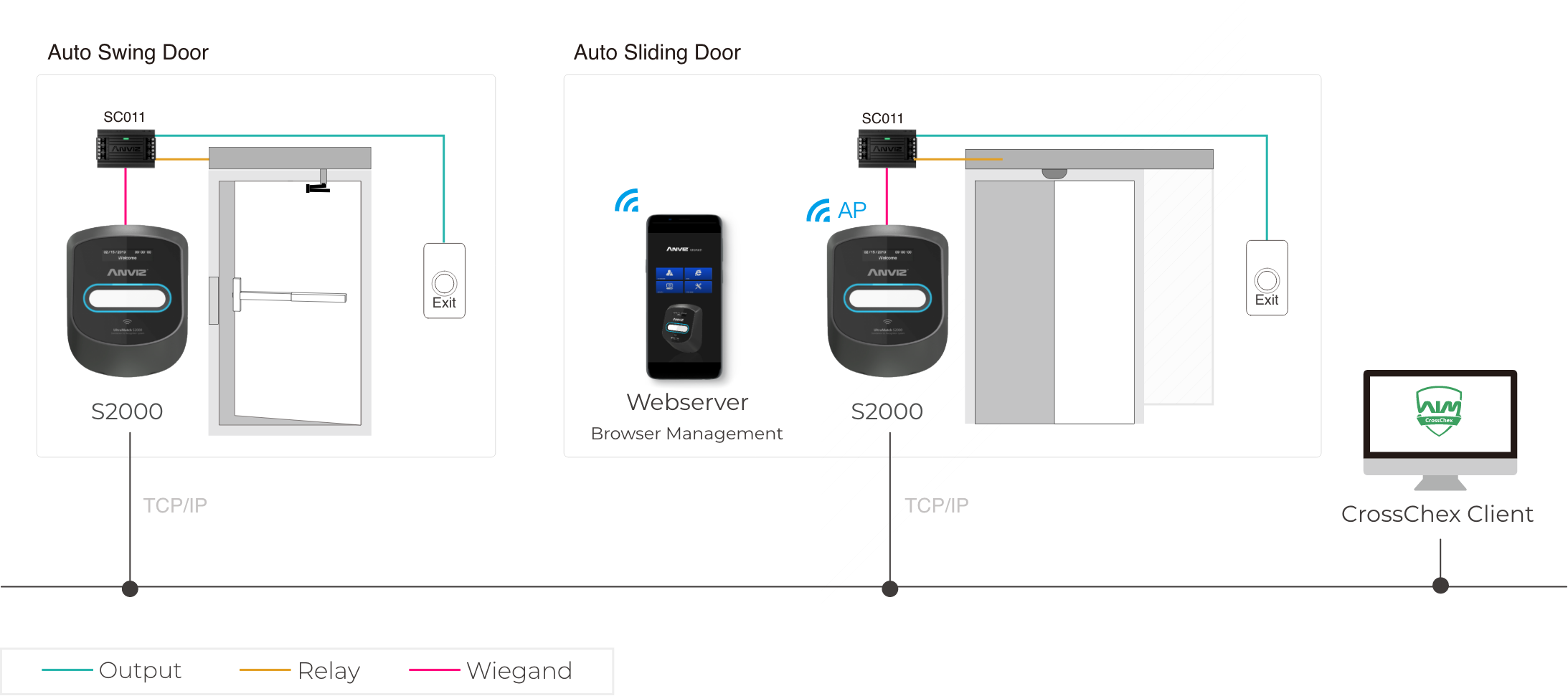

Configuration
Applications
Depending on its high accuracy, the terminal is ideal for high-level security applications, such as Border Protection, Pharmaceutical & Healthcare or Jails.

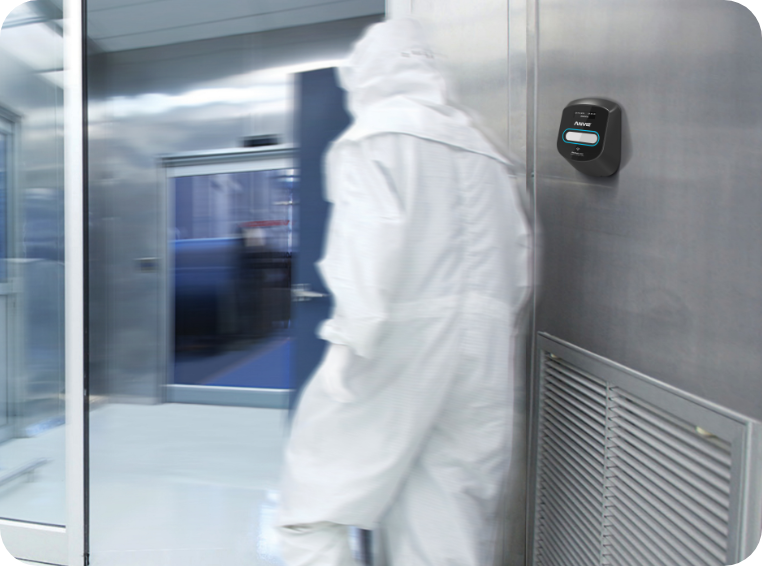

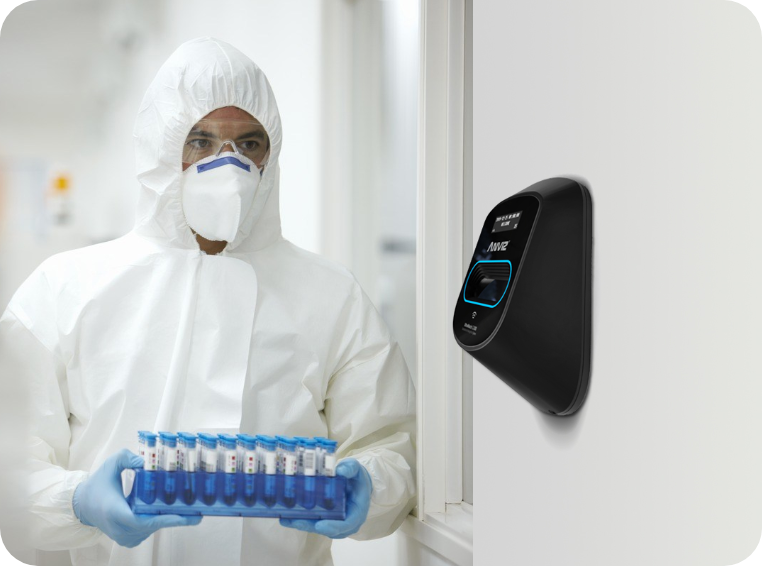

Pharmaceutical & Labs
The security of the iris access control is very suitable for these places to avoid the leakage of experimental information, and the non-touch method also effectively avoids the risk of experimental contamination.

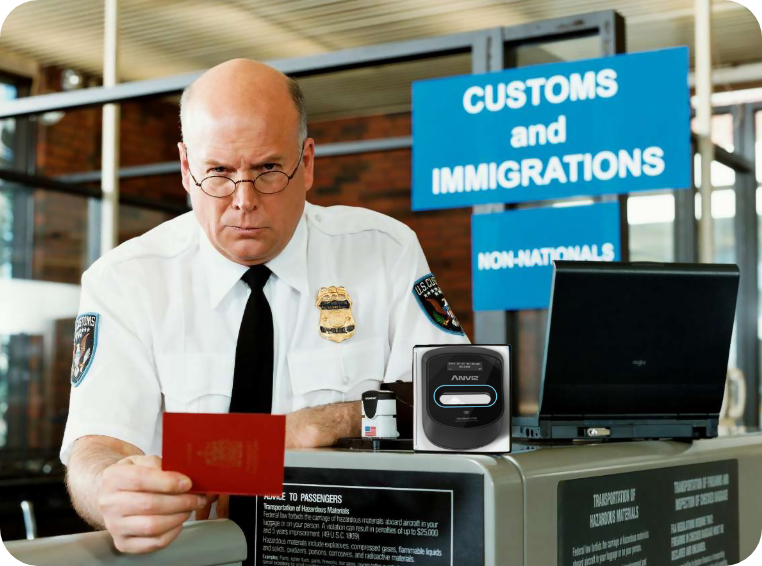

Border Protection
As the most secure biometric method, iris recognition can effectively help customs officers to effectively recognize suspicious passengers, especially to effectively eliminate the person who use fake fingerprint and face.

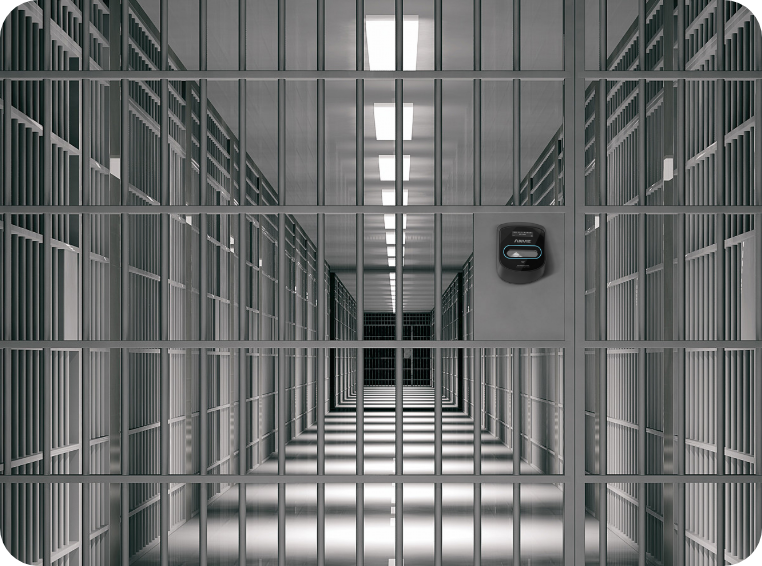

Jails
Integrate with existing security system, the accurate and reliable personnel management solutions can provide multiple functions such as access control, prisoner identity verification, visitor identity verification, patrol management and emergency processing.
Hospital and Healthcare
Iris identification is largely used in the healthcare industry. The patients take iris as an ID to get superior security of patient record, e-prescribing, and preventing medical errors. It provide touch-less access when healthcare workers wearing PPE, such as mask, gloves.

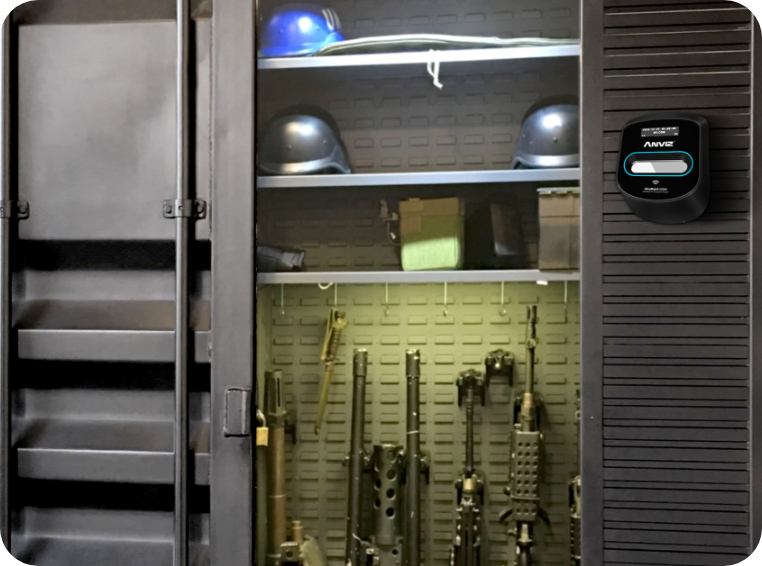

Armory
Biometric Iris-Based recognition access helps to protect and track armory assets. It guarantee you the accuracy and reliability for securing weapons and critical evidence.

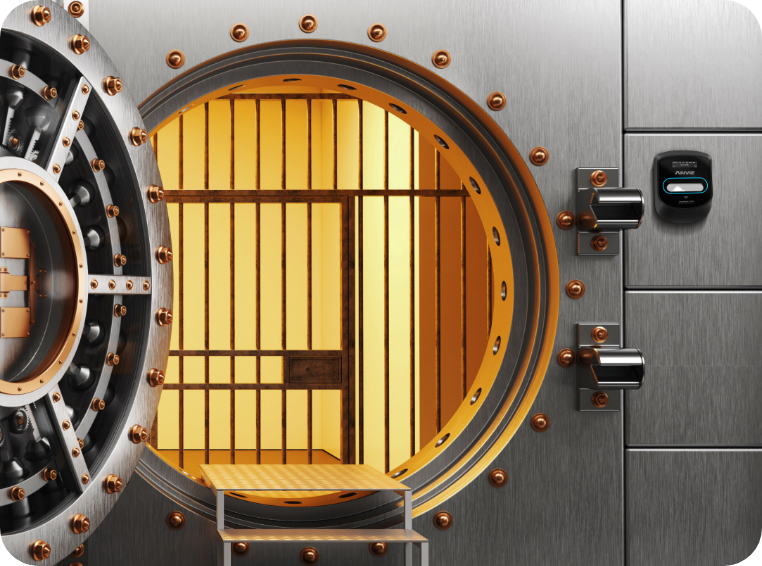

Vault & Safe Box
Efficiently avoid Identity theft cases, the system can support Iris identifications to improve the security level.
-
Send Your Inquiry
Fill in the following application form to send your inquiry
Specifications
| Capacity | ||
|---|---|---|
|
Model |
UltraMatch S2000 |
|
|
User |
2,000 |
|
|
Log Capacity |
100,000 |
|
| Interface | ||
|
Communication |
TCP/IP, RS485, WiFi |
|
|
I/O |
Wiegand 26/34, Anviz-Wiegand Output |
|
| Feature | ||
|
Iris Capture |
Dual Iris Capture |
|
|
Capture Time |
<0.5s |
|
|
Identification Mode |
Iris, Card |
|
|
Web Server |
Support |
|
|
Wireless working mode |
Access Point(Only for mobile device management) |
|
|
Temper Alarm |
Support |
|
|
Eye Safety |
ISO/IEC 19794-6(2005&2011) / IEC62471: 22006-07 |
|
|
Software |
Anviz Crosschex Standard Management Software |
|
| Hardware | ||
|
CPU |
Dual Core 1GHz CPU |
|
|
OS |
Linux |
|
|
LCD |
Active Area 2.23 in.(128 x 32 mm) |
|
|
Camera |
1.3 Million Pixel Camera |
|
|
RFID Card |
EM ID (Optional) |
|
|
Dimensions |
7.09 x 5.55 x 2.76 in.(180 x 141 x 70 mm) |
|
|
Temperature |
20°C to 60°C |
|
|
Humidity |
0% to 90% |
|
|
Power |
DC 12V 2A |
|
Touchless Access Control

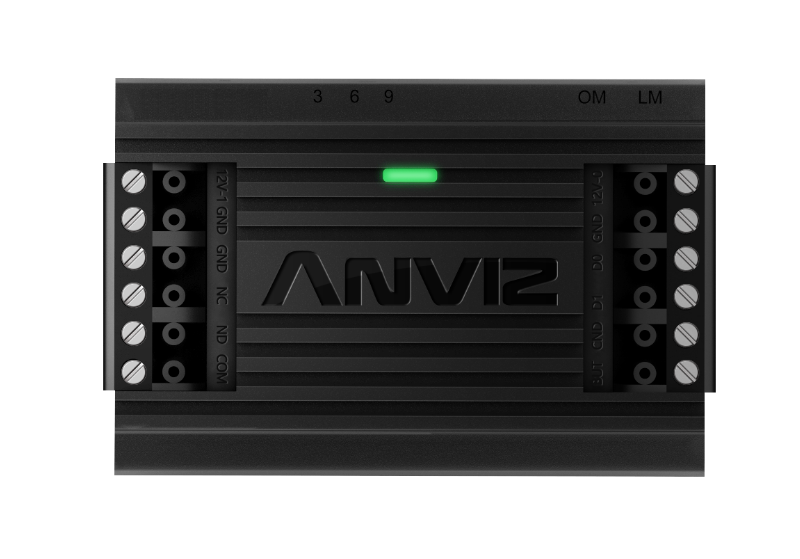

FacePass 7 ProPeripheral Product
Related Download
- Brochure 2.8 MB
-
Anviz_UltraMatchS2000_Catalogue_EN_05.16.2019
04/10/2020
2.8 MB
- Video 327.7 KB
-
S2000-video
04/10/2020
327.7 KB
- Manual 757.5 KB
-
Anviz_UltraMatchS2000_QuickGuide_EN_07.05.2018.pdf
07/06/2018
757.5 KB
Related Faq
-
Contents:
Part 1. Firmware Updates Via Web Server
1) Normal Update (video)
2) Forced Update (video)
Part 2. Firmware Updates Via CrossChex (video)
Part 3. Firmware Updates Via Flash Drive
1) Normal Update (video)
2) Forced Update (video)
.
Part 1. Firmware Update Via Web Server
1) Normal Update
>> Step 1: Connect Anviz device to PC via TCP/ IP or Wi-Fi. (How to connect to CrossChex)
>> Step 2: Run a browser (Google Chrome is recommended). In this example, the device is set in the server mode and IP address as 192.168.0.218.
>> Step 3. Enter 192.168.0.218 (Your device might be different, check the device IP and enter IP address) in the browser address bar to run as the webserver mode.
>> Step 4. Then enter your user account, and password. (default User: admin, Password: 12345)
>> Step 5. Choose 'Advance Setting'
>> Step 6: Click 'Firmware Upgrade', choose a firmware file that you want to update and then click 'Upgrade'. Wait for the updating complete.
>> Step 7. Update Complete.
>> Step 8. Check the firmware version. (You can check current version either on webserver info page or on the device info page)
2) Forced Update
>> Step 1. Follow the steps above till steps 4, and enter 192.168.0.218/up.html or 192.168.0.218/index.html#/up in the browser.
>> Step 2. Forced Firmware Upgrade mode is set successfully.
>> Step 3. Operate Step 5 - Step 6 to finish the forced firmware updates.
Part 2: How To Update Firmware Via CrossChex
>> Step 1: Connect the Anviz device to the CrossChex.
>> Step 2: Run the CrossChex and click the 'Device' menu on the top. You will be able to see a small blue icon if the device has connected to the CrossChex successfully.
>> Step 3. Right-click the blue icon, and then click the 'Update Firmware'.
>> Step 4. Choose the firmware that you want to update.
>> Step 5. Firmware update process.
>> Step 6. Firmware Update Complete.
>> Step 7. Click the 'Device' -> Right-Click the blue icon -> 'Device Information' to check the firmware version.
Part 3: How To Update The Anviz Device Via Flash Drive.
1) Normal update mode
Recommended Flash Drive Requirement:
1. Empty Flash Drive, or place firmware files in the Flash Drive root path.
2. FAT file system (Right-click USB Drive and click 'Properties' to check the Flash Drive file system.)
3. Memory Size under 8GB.>> Step 1: Plug a flash drive (with an update firmware file) into the Anviz Device.
You will see a small Flash Drive icon on the device screen.
>> Step 2. Login with Admin mode to the device -> and then 'Setting'
>> Step 3. Click 'Update' -> then 'OK'.
>> Step 4. It will ask you to restart, press 'Yes(OK)' to restart once to complete the update.
>> Done
2) Force update mode
(****** Sometimes devices are not allowed to be updated, this is because of device protection policy. You can use force update mode when this situation occurs. *****)
>> Step 1. Follow the Flash Drive Update from step 1 - 2.
>> Step 2. Click 'Update' to get into the page like showing in the below.
>> Step 3. Press 'IN12345OUT' in the keypad, then the device will change to forced upgrade mode.
>> Step 4. Click 'OK', and the device will restart once to complete the update.
>> Step 5. Update Complete.
