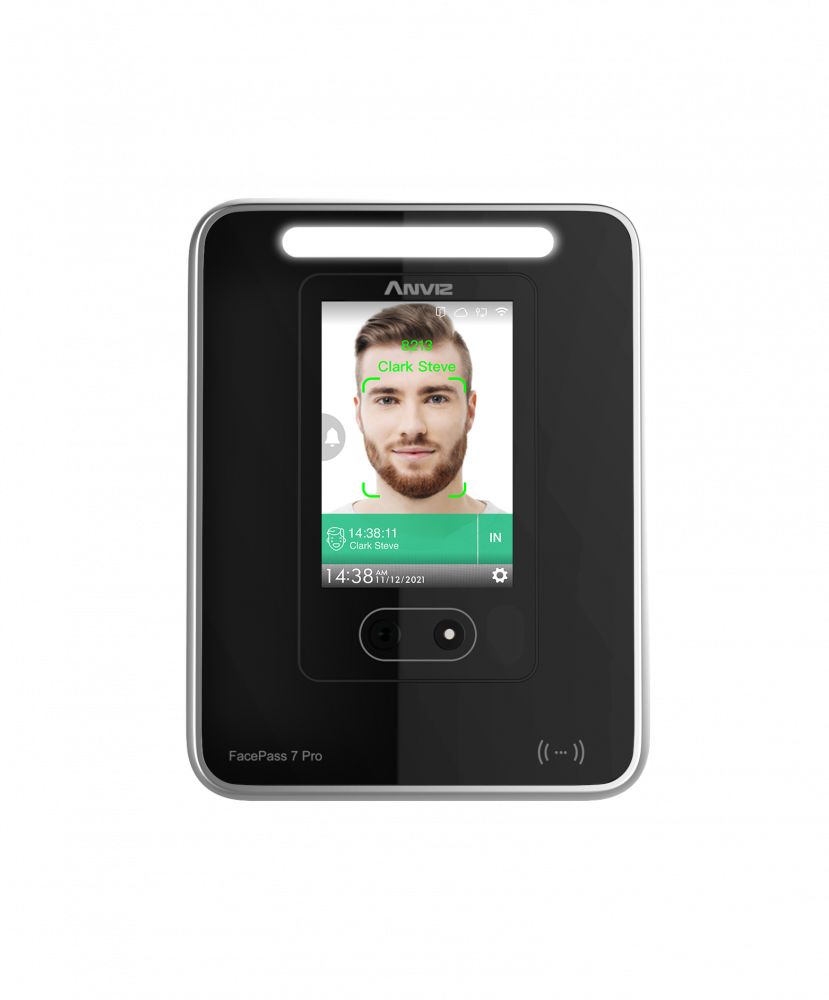

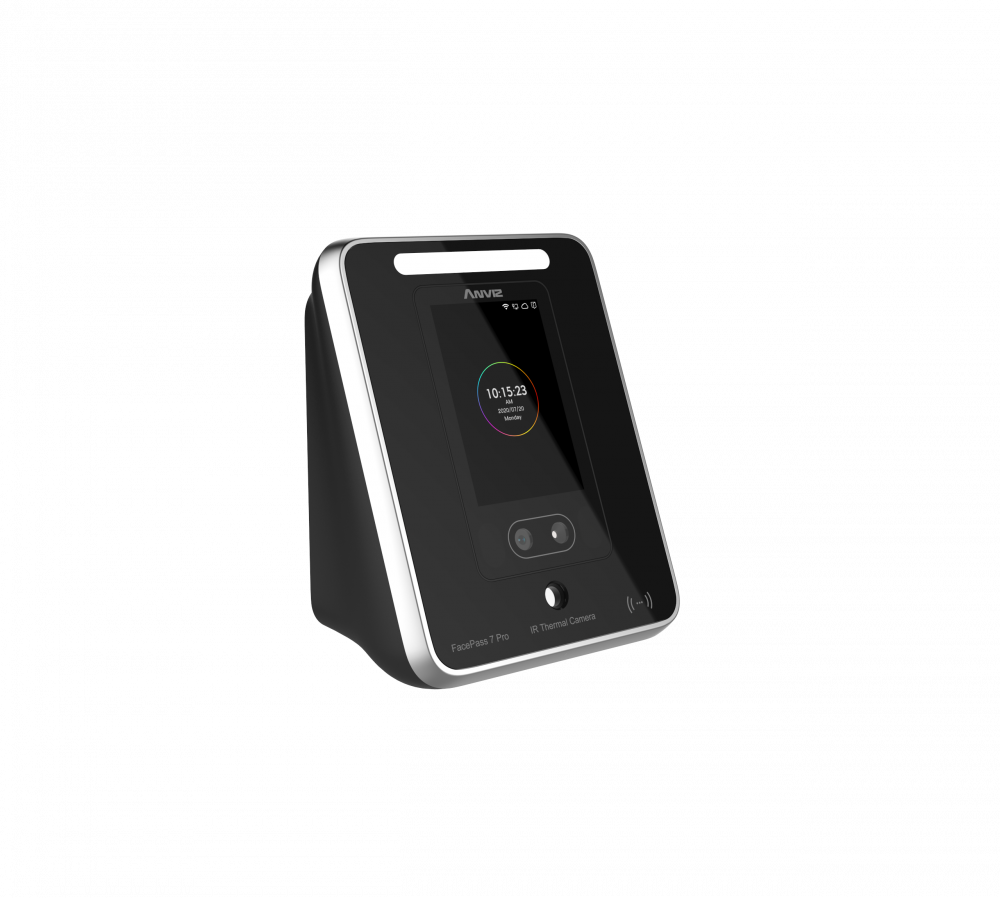

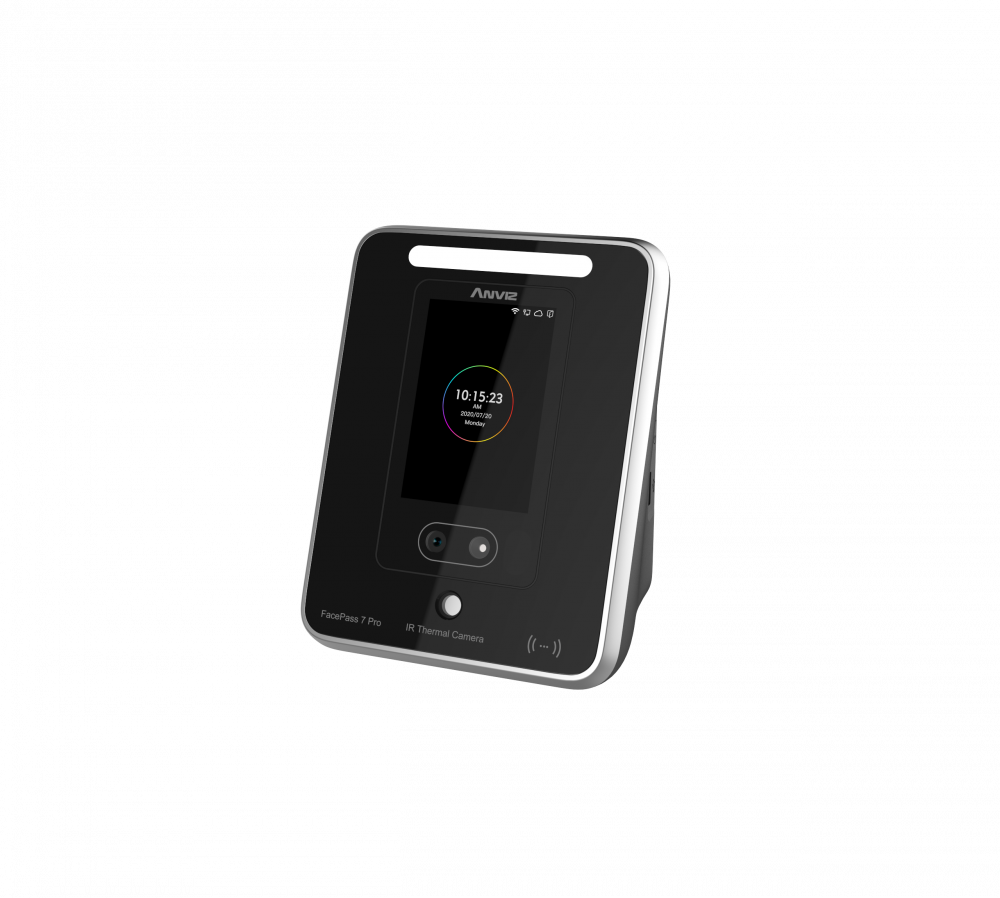

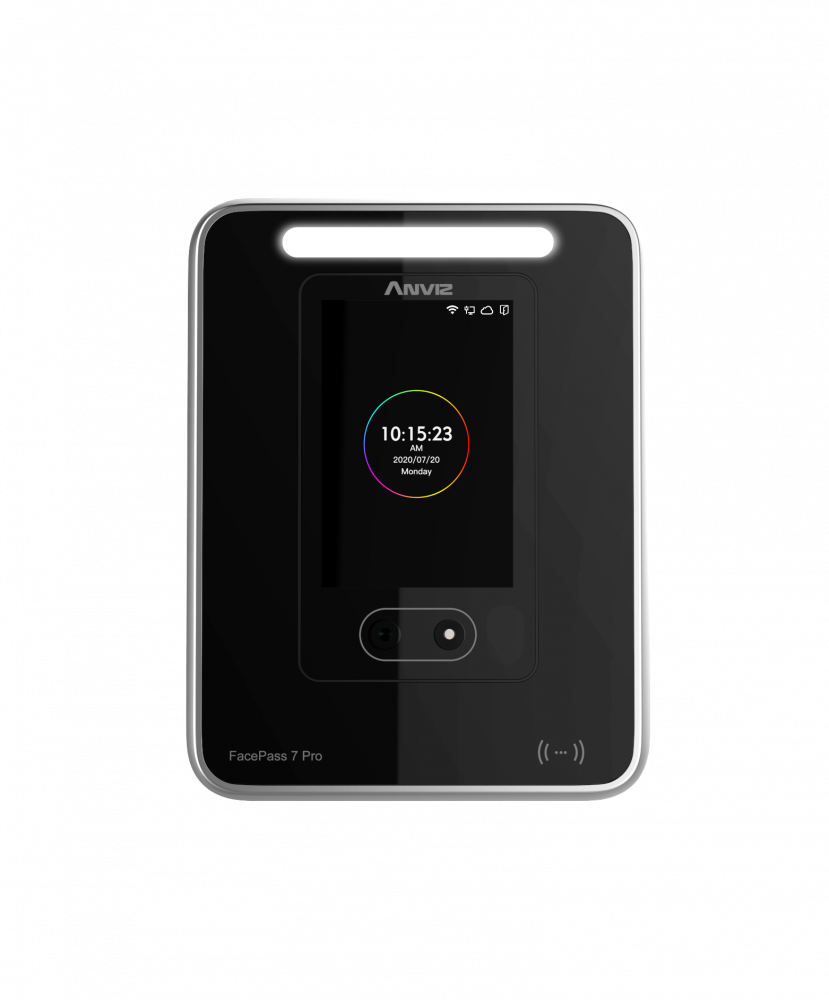

FacePass 7 Pro Smart Face Recognition

FacePass 7 Pro

Smart Face Recognition and Infared Thermal Temperature Detection Terminal

The latest generation FacePass 7 Pro Series is a face recognition access control and time attendance terminal with IR-based live face detection for highly secure authentication that supports RFID cards, Mask Detection as well as Temperature Screening. FacePass 7 Pro Series is easy to install, use with features like an intuitive interface on 3.5" TFT Touchscreen, quick management by Face Image Registration, the built-in Web Server, compatible with Anviz CrossChex Standard desktop software, and Anviz cloud-based software CrossChex Cloud.
- Fast CPU
- WiFi
- Webserver
- Camera
- Smart Led
- TCP/IP
- Relay
- Wiegand
Features
- Improved Greater User Convenience
  FacePass 7 Pro series provides improved user convenience with 3.5" touchscreen and upgraded CPU, enabling faster and more accurate verification for an unrivaled user experience.
- AI Deep Learning Facial Recognition Identification

  Deep learning face recognition offers quick,easy and safe identification, even you see a colleague who is wearing a face mask, sunglasses, and a baseball cap, it may still recognize them. Face recognition eliminating the risk of buddy punching. RFID and PIN options are also supported.
- Built-In Temperature Reader and Lockout Threshold Access (IRT Version)
  Manage workplace safety by recording your employees’ temperature as part of your access and time management. Designate a temperature lockout threshold and the device will prevent accessing or punching for employees that meet or exceed this number.
- Powerful Cloud Support
  The FacePass 7 Pro series terminals are backed by versatile cloud software CrossChex Cloud, enabling easily track and manage employee attendance from anywhere, anytime.

Specification

General
Model	FacePass 7 Pro	FacePass 7 Pro IRT
Identification Mode	Face, Pin Code, RFID Card, Mask Detection, Body Temperature Detection (IRT)
Face Verify Distance	0.3~1.0 m (11.81~39.37" )
Verify Speed	<0.3s
IRT (Body Temperature Detection)
Detection Distance	—	30~50 cm (11.81~19.69" )
Angel Range	—	Level: ±20°, Vertical: ±20°
Temperature Accuracy	—	±0.3°C (0.54°F)
Capacity
Max Users	3,000
Max Logs	100,000
Function
Face Image Registration	Supported
Self-defined Status	8
Record Self-check	Supported	√
Embedded Webserver	Supported
Multi-languages Support	Supported
Multiple Language	Supported
Hardware
CPU	Dual 1.0 GHz & AI NPU
Camera	2MP Dual Camera ( VIS & NIR )
Display	3.5" TFT Touch Screen
Smart LED	Support
Dimensions(W x H x D)	12415592 mm (4.886.103.62")
Working Temperature	-20°C~60°C (-4°F~140°F)
Humidity	0% to 95%
Power Input	DC 12V 2A
Interface
TCP/IP	√
RS485	√
USB PEN	√
Wi-Fi	√
Relay	1 Relay Out
Temper Alarm	√
Wiegand	1 In & 1 Out
Door Contact	√
Software Ompatibility
CrossChex Standard	√
CrossChex Cloud	√

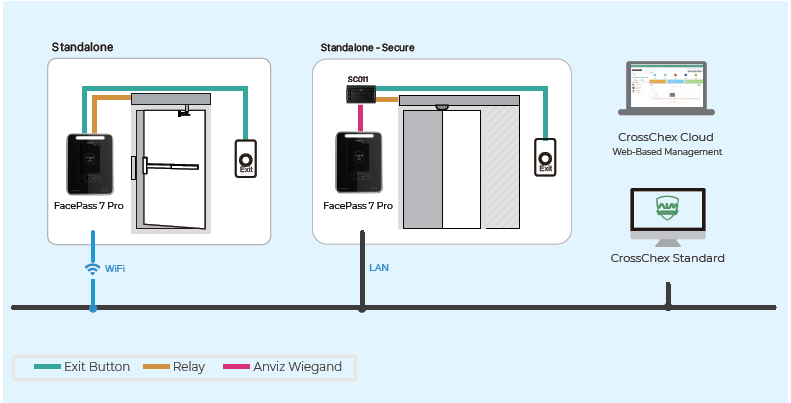

Application
