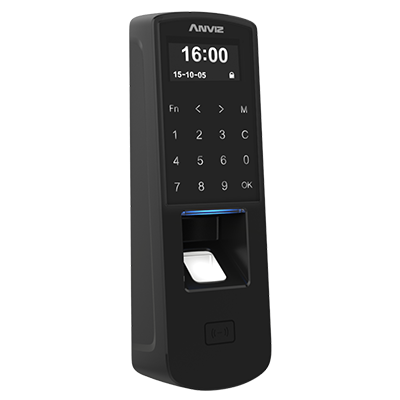

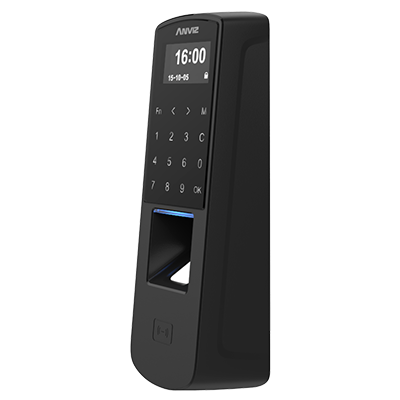

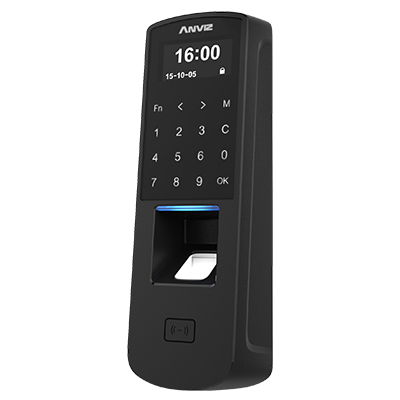

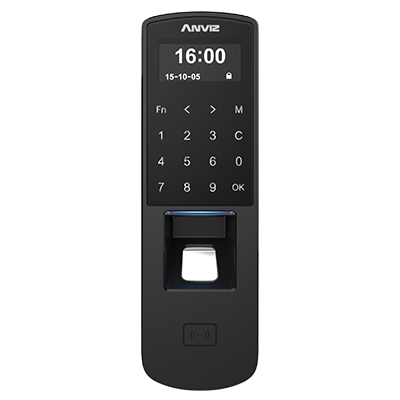

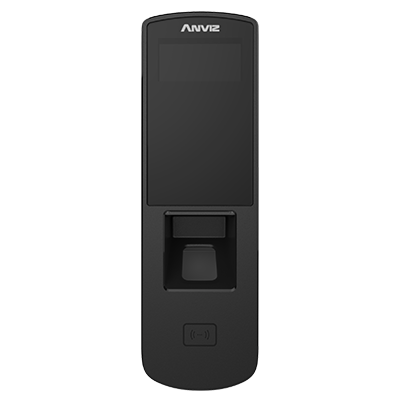

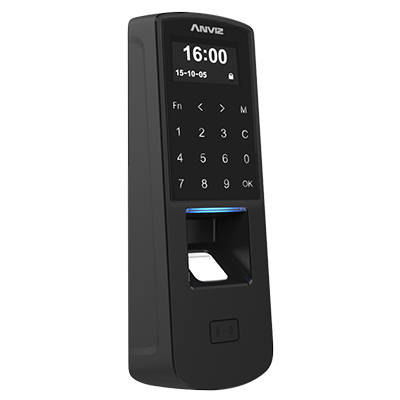

P7
PoE-Touch Fingerprint and RFID Access Control
P7 is a new generation access control device of Anviz. The P7 adopts touch activation technologies in fingerprint sensor and keypad easy for user operation. As an access control, which are designed with PoE communication and access interface separation, make the P7 easy for Installation and cost down the labor. The powerful access control function is indispensable for P7. Relay output for door control, Wiegand output and group, time zones. Multi-communication with TCP/IP, RS485 and Mini USB port. The Alarm push function will protect access control safe.
-
Features
-
Using Anviz intelligent core algorithm
-
5000 Fingerprints, 5000 Cards, 50000 Records
-
Optical waterproof fingerprint collection device, abrasion resistance, adapt to all kinds of fingerprints
-
Touch activation fingerprints sensor and keypad
-
Support POE power supply for both device and lock
-
RS485, mini USB and TCP/IP communications, Wiegand output
-
Directly controlled door lock, grouping management, time setting
-
Tamper alarm door magnetic signal interface (known the door open and close state), to support himself back
-
Fingerprint, password and card combination of independence and recognition
-
Touch the bright background number keys
-
High precision OLED displays
-
Standard EM the RFID card reader module, optional Mifare module
-
Optional waterproof cover, realize outdoor use, IP53
-
Software support for period of time, group management, 16 group access permissions, flexible control
-
32 entrance guard time real-time monitoring data, easy to learn and easy to use
-
-
Specification
Capacity Fingerprint Capacity 5,000
Card Capacity 5,000
Log Capacity 50,000
Interface Comm RS485, Mini USB Slave, TCP/IP, Wiegand Out&In
Relay Relay Output (COM, NO, NC or Direct Lock Control)
Feature Door Open Sensor Yes
Tamper Alarm Yes
Card Reader Module EM RFID, Optional Mifare
Workcode 6-digits
Short Message 50
Hardware PoE Standard IEEE802.3af and IEEE802.3at
Operating Voltage DC 12V
Size 54(w)*170(h)*41(d)mm
Temperature -25℃~70℃
Ingress Protection Rate IP53 (Optional Waterproof Cover)
Scan Area 22mm*18mm
Resolution 500 DPI
Display 128*64 OLED
-

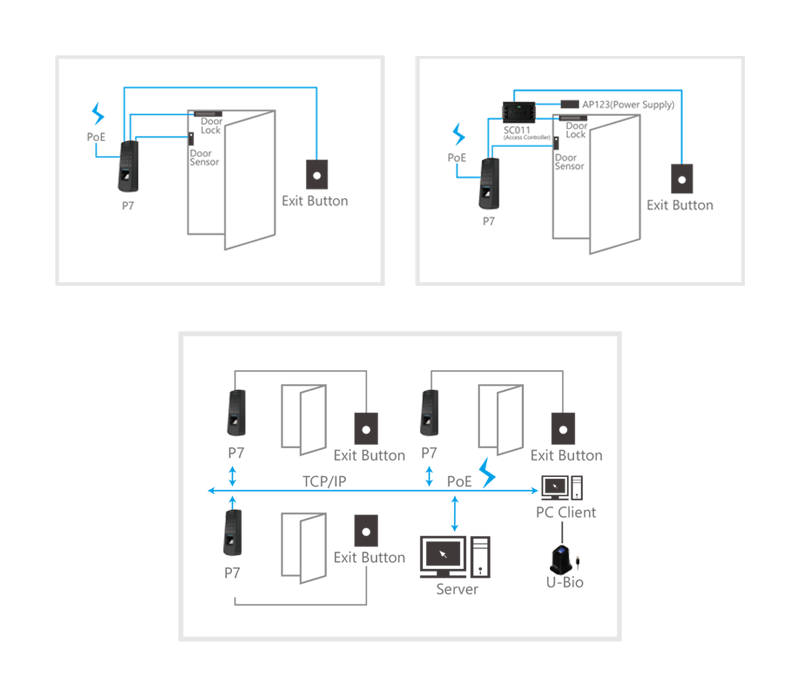

Application
Related Download
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Brochure 862.8 KB
-
Anviz_P7_Catalogue_EN_07.05.2018
01/22/2019
862.8 KB
- Certificate 257.4 KB
-
P7 BIS Certification
01/19/2017
257.4 KB
Related Faq
-
How to Upgrade Anviz Firmware (ST Platform)? 04/16/2020Video for non-screen device Firmware upgrade
Instruction
Video for device with screen Firmware upgrade
Step 1) Get Firmware Upgrade Tool (Download Here)
Connect device to your PC with RJ11 to USB cable or Mini USB cable.
Step 2) Get authorization (Optional)
After connection, swipe the admin card (Enroll Card or Delete Card) in 10 seconds.
ATTENTION ! This step is only for non-LCD screen models!
Step 3) Confirm that the device is connected successfully
You will see a new disk driver icon occurs in your windows file manager.
Step 4) Upgrade in your PC
4.1 Run Firmware Upgrade Tool.
4.2 Update to the newest version of Firmware
-- Click “Browser” to find the corresponding Firmware (*.bin file).
-- Click “Upgrade” to start upgrading, this process may take a few seconds.
4.3 Now you get the last version of Firmware.
Please contact us (support@anviz.com) if you have any problem.
Thanks!
Anviz Technical Support Team
2020-04-16 -
Contents
Part 1. Anviz CrossChex Connection Guide
1) Connection Via Mini USB
2) Two Ways To Remove The Admin's Permission
Part 2. Reset Anviz Devices Admin Password
1) Reset Anviz Devices Admin Password
.
Part 1.
1) Step 1.1: Connection via mini USB. (Skip to Step 1.2 if using the TCP/ IP model)
CrossChex -> Device -> Add -> Input '0' as device ID -> Add
2) Step 1.2: Connection via the TCP/ IP model.
Click the 'Add' button and then 'Search' button. All available devices will be listed below. Choose the one device that you want to connect to CrossChex, and press the 'Add' button.
Step 2: Test if the device is connected to CrossChex.
Click the 'Synchronize time' to test if the device/s and CrossChex are connected successfully.
3) There are two ways to remove the admin's permission.
Step 3.1.1:
Select the user/s that you want to remove admin permission. Double click the user to open Add/ Modify User Info page, then change 'administrator' (the administrator displays in red font) to 'Normal user'.
CrossChex -> User -> Select one user -> change Administrator -> Normal user
Choose 'Normal user', then click the 'Save' button. It will remove the user's admin permission and set it as a normal user.
Step 3.1.2:
Click 'Set Privilege', choose the group, then click the 'OK' button.
Step 3.2.1: Back up the user and records.
Step 3.2.2: Initialize the Anviz Device (*******Warning! All Data Will Be Removed******)
Click Device information, click initialize the device, then click 'OK'
Part 2
1) Reset Anviz devices admin pasword.
Run CrossChex -> Device -> Device Parameter -> Management Password -> OK
