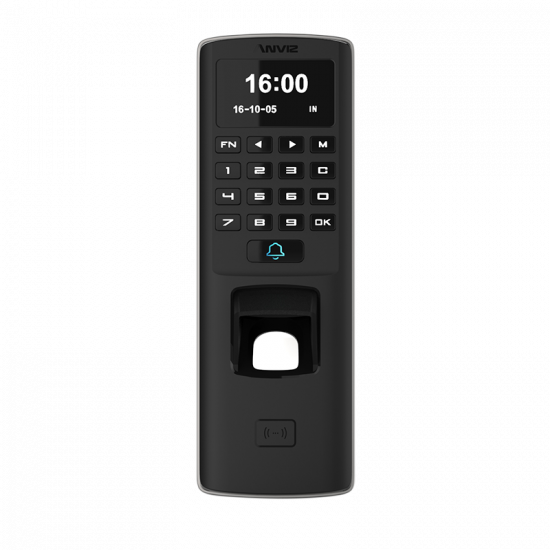

M7
Outdoor Professional Standalone Access Control Terminal
M7 is a new generation outdoor access control device of Anviz. The M7 adopts metal case and IP65 outdoor design with activation technologies in fingerprint sensor for easy for ease of operation. As an access control device, which are designed with PoE communication and access interface separation, The M7 is easy to install and reducing the labor cost. The powerful access control function is noteworthy for M7. Relay output for door control, Wiegand output,time zones and access groups. TCP/IP and RS485.multi communications and the Alarm push function increases area security.
-
Features
-
Using Anviz intelligent core algorithm
-
3000 Fingerprints, 3000 Cards, 50000 Records
-
Optical waterproof fingerprint collection device, abrasion resistance, adapt to all kinds of fingerprints
-
Touch activation fingerprints sensor
-
Support POE power supply for both device and lock
-
RS485 and TCP/IP communications, Wiegand output
-
Directly controlled door lock, grouping management, time setting
-
Tamper alarm door magnetic signal interface (known the door open and close state), to support himself back
-
Fingerprint, password and card combination of independence and recognition
-
High precision OLED displays
-
Standard EM the RFID card reader module, optional Mifare module Metal Case, IP65 outdoor solution
-
Software support for period of time, group management, 16 group access permissions, flexible control
-
32 entrance guard time real-time monitoring data, easy to learn and easy to use
-
-
Specification
Capacity Fingerprint Capacity
3,000
Card Capacity
3,000
Log Capacity
50,000
interface Comm.
PoE-TCP/IP，RS485
Relay
Relay Output (COM, NO, NC )
I/O
Wiegand Out&In，Door Sensor, Exit Button
Feature Capacity
50,000
Activation mode
Fingerprint Touch activation
Identification Mode
FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Identification Time
<0.5S
Message
50
Software
Anviz Crosschex standard software
Hardware RFID Card
125KHz EM & 13.56MHz Mifare
Tamper Alarm
Yes
PoE
Standard IEEE802.3af
Scan area
22mm*18mm
Resolution
500 DPI
LCD
128*64 OLED
Size (W * H * D)
58×166×32mm (2.13×6.7×1.61”)
Temperature
Operating Temperature:-30°C~60°C Storage Temperature:-40°C~70°C Best Humidity:20%~90%
Operating Voltage
DC 12V
-
Application
Related Download
- Brochure 13.2 MB
-
2022_Access Control & Time and Attendance Solutions_En(Single page)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Access Control & Time and Attendance Solutions_En(Spread format)
02/18/2022
13.0 MB
- Brochure 678.9 KB
-
Anviz_M7_Catalogue_EN_11.23.2018
11/23/2018
678.9 KB
- Manual 1.7 MB
-
Anviz_M7_QuickGuide_EN_09.07.2018
09/07/2018
1.7 MB
- Certificate 11.9 KB
-
Anivz_M7_Certificate_FCC-SDOC
09/06/2018
11.9 KB
- Certificate 626.6 KB
-
Anviz_M7_Certificate_CE-EMC
09/06/2018
626.6 KB
- Certificate 627.1 KB
-
Anviz_M7_Certificate_CE-RF
09/06/2018
627.1 KB
- Certificate 679.7 KB
-
Anviz_M7_Certificate_ROHS
09/06/2018
679.7 KB
Related Faq
-
How to Upgrade Anviz Firmware (ST Platform)? 04/16/2020Video for non-screen device Firmware upgrade
Instruction
Video for device with screen Firmware upgrade
Step 1) Get Firmware Upgrade Tool (Download Here)
Connect device to your PC with RJ11 to USB cable or Mini USB cable.
Step 2) Get authorization (Optional)
After connection, swipe the admin card (Enroll Card or Delete Card) in 10 seconds.
ATTENTION ! This step is only for non-LCD screen models!
Step 3) Confirm that the device is connected successfully
You will see a new disk driver icon occurs in your windows file manager.
Step 4) Upgrade in your PC
4.1 Run Firmware Upgrade Tool.
4.2 Update to the newest version of Firmware
-- Click “Browser” to find the corresponding Firmware (*.bin file).
-- Click “Upgrade” to start upgrading, this process may take a few seconds.
4.3 Now you get the last version of Firmware.
Please contact us (support@anviz.com) if you have any problem.
Thanks!
Anviz Technical Support Team
2020-04-16 -
Contents
Part 1. Anviz CrossChex Connection Guide
1) Connection Via Mini USB
2) Two Ways To Remove The Admin's Permission
Part 2. Reset Anviz Devices Admin Password
1) Reset Anviz Devices Admin Password
.
Part 1.
1) Step 1.1: Connection via mini USB. (Skip to Step 1.2 if using the TCP/ IP model)
CrossChex -> Device -> Add -> Input '0' as device ID -> Add
2) Step 1.2: Connection via the TCP/ IP model.
Click the 'Add' button and then 'Search' button. All available devices will be listed below. Choose the one device that you want to connect to CrossChex, and press the 'Add' button.
Step 2: Test if the device is connected to CrossChex.
Click the 'Synchronize time' to test if the device/s and CrossChex are connected successfully.
3) There are two ways to remove the admin's permission.
Step 3.1.1:
Select the user/s that you want to remove admin permission. Double click the user to open Add/ Modify User Info page, then change 'administrator' (the administrator displays in red font) to 'Normal user'.
CrossChex -> User -> Select one user -> change Administrator -> Normal user
Choose 'Normal user', then click the 'Save' button. It will remove the user's admin permission and set it as a normal user.
Step 3.1.2:
Click 'Set Privilege', choose the group, then click the 'OK' button.
Step 3.2.1: Back up the user and records.
Step 3.2.2: Initialize the Anviz Device (*******Warning! All Data Will Be Removed******)
Click Device information, click initialize the device, then click 'OK'
Part 2
1) Reset Anviz devices admin pasword.
Run CrossChex -> Device -> Device Parameter -> Management Password -> OK
