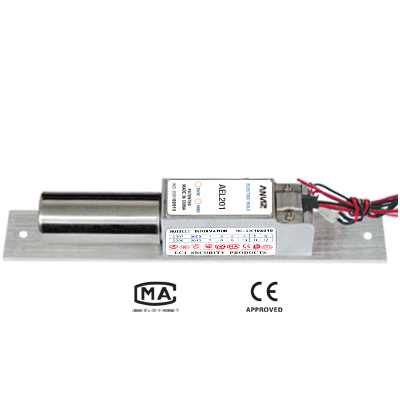

AEL201 Electric Bolt Lock

AEL201

Electric Bolt Lock

Built-in installation with elegant appearance, in adoption of top-quality magnetic materrials and special rocessing technique for the electromagnetic part, which produce no residual magnetism after a long-time use and reduce failure and maintenance rate in combination of electronic, mechanic and dynamic theories for design and production accordingly. Frameless glass door can be installed with relevant auxiliary supports.
Features
- The installation of frame doors of office buildings and residential community entrances and exits.
- Working current:650mA
- Standby current:250mA
- Holding force:1000kg
- Weight: 1.05 kg
- Size:200 * 35 * 38 mm
Specification

Hardware

Operating Voltage DC 12V

Size L200 * W35 * H38 m

Working Current 650 mA

Continuous Duty Current L200 * W35 * H38 mm
