FaceDeep 3
AI Based Smart Face Ganewa da RFID Terminal
FaceDeep 3 Series shine sabon ƙarni mara tuntuɓar AI-based face gane tasha sanye take da dual core CPU da Embedded Linux tare da sabuwar. BioNANO® zurfin ilmantarwa algorithm. FaceDeep Jerin 3 yana goyan bayan mafi girman bayanan bayanan fuska har guda 6,000 kuma yana iya kaiwa ƙasa da sabon lokacin koyo fuska na 1s da ƙasa da lokacin gane fuska 300ms da 1:6,000. FaceDeep3 yana ba da allon taɓawa na 5" IPS cikakken kusurwar kusurwa. FaceDeep3 na iya gane gano rayuwa ta gaskiya don hana fuskokin karya daga hotuna da bidiyo.
-
Features
-
1GHz Linux Based Processor
Sabon tsarin sarrafa 1Ghz na Linux yana tabbatar da lokacin kwatancen 1:10,000 ƙasa da daƙiƙa 0.3. -
Sadarwar Sadarwar Wi-Fi Mai Sauƙi
Ayyukan Wi-Fi na iya fahimtar ingantaccen sadarwar mara waya da kuma gane sassauƙan shigarwa na kayan aiki. -
Gane Fuskar Rayuwa
Gane fuska mai rai bisa infrared da haske mai gani. -
Wide Angle Kamara
Kyamara mai girman kusurwa 120° yana ba da damar gane fuska da sauri. -
IPS Cikakken allo
Allon IPS mai launi yana tabbatar da mafi kyawun hulɗa da ƙwarewar mai amfani kuma yana iya ba da sanarwar sanarwa ga masu amfani. -
Yanar gizo
Sabar gidan yanar gizo tana tabbatar da haɗin kai cikin sauƙi da sarrafa kai na na'urar. -
Aikace-aikacen girgije
Aikace-aikacen girgije na tushen yanar gizo yana ba ku damar shiga na'urar ta kowane tashar wayar hannu daga kowane lokaci da ko'ina.
-
-
Ƙayyadaddun bayanai
Capacity model
FaceDeep 3
FaceDeep 3 Pro
FaceDeep 3G4
Mai amfani
6,000 6,000 6,000 Card
6,000 6,000 6,000 Shiga
100,000 Interface TCP / IP √ RS485 √ Wi-Fi √ - - Wi-Fi + Bluetooth - √ - 4G - - √ Relay 1 Gudun tafiya Ƙararrawar Haushi √ Wiegand 1 In / 1 Fita Tuntuɓar Ƙofa √ Janar Yanayin ganewa Fuska, Kati, ID + Kalmar wucewa Nisa Gane Fuska 0.5 ~ 1.5m (19.69 ~ 59.06") Gudun Gane Fuska <0.3 S Fasahar RFID 125 kHz EM
13.56 MHz Mifare
13.56 MHz Mifare
aiki Yanayin Halartar Lokaci 8 Rukuni, Yankin Lokaci Ƙungiyoyin shiga 16, Yankin Lokaci 32 WebServer √ Yi rikodin Tambaya ta atomatik √
Muryar amsawa √ agogon kararrawa √ Yare da yawa √ Hardware CPU
Dual 1.0 GHz kyamarori
Kyamara Biyu (VIS & NIR) Wurin dubawa Horrizontal:±20° tsaye:±20° nuni 5 "TFT Touch Screen Resolution 640*480 Smart LED Support Girma (W x H x D) 14.6*16.5*3.4 cm 5.75*6.50*1.34” aiki Temperatuur -5℃~60℃ 23℉~160℉ zafi 0% zuwa 95% Ƙarfin wutar DC 12V 2A Rashin Cinikin Software CrossChex Standard
√
CrossChex Cloud
√ -
Aikace-aikace
Zazzagewa mai alaƙa
- Brochure 11.2 MB
-
Anviz FaceDeep3 Jerin Rubutun
08/18/2022
11.2 MB
- Brochure 13.2 MB
-
2022_Ikon Samun dama & Lokaci da Halartar Magani_En(Shafi ɗaya)
02/18/2022
13.2 MB
- Brochure 13.0 MB
-
2022_Ikon Samun dama & Lokaci da Halartar Magani_En(Tsarin Yaɗa)
02/18/2022
13.0 MB
- manual 1.9 MB
-
FaceDeep3_Series_QuickGuide_EN
08/04/2021
1.9 MB
Faq mai alaƙa
-
Wanda ya kirkira: Chalice Li
An sabunta: 1 ga Yuni, 2021 da karfe 10:20 na safe
Akwai hanyoyi guda biyu don yin rijistar masu amfani. Kuna iya yin rajista cikin sauri ta hanyar yin rajistar fuska(A). Idan kana son yin cikakken rajista, da fatan za a je zuwa Mai amfani, kuma ƙara mai amfani(B) a ƙarƙashin wannan menu.
A.) Rijista fuskaB.) Ƙara mai amfani
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa -
Wanda ya kirkira: Chalice Li
An sabunta: 4 ga Yuni, 2021 11:58
Mataki 1: Shigar da menu na cibiyar sadarwa daga babban menu
Mataki 2: Saita yanayin WAN azaman WIFI
Mataki 3: Jeka menu na Wifi, gama saitin yanayin IP na wifi kuma bincika wifi naka.
Mataki na 4: Yi amfani da CrossChex software don ƙara na'urar. Kuna iya bincika na'urar ko shigar da adireshin IP na na'urar da hannu a cikin hanyar LAN a ƙarƙashin saitin na'urar.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Wanda ya kirkira: Chalice Li
An sabunta: 1 ga Yuni, 2021 16:12
Don ragewa ko haɓaka firmware na musamman don FaceDeep 3 /FaceDeep 3 IRT na'urori, kuna buƙatar tilasta haɓaka haɓakawa na FaceDeep 3 Series ta USB Flash Drive.
Dalla-dalla matakai kamar a kasa:
Mataki 1: Da fatan za a shirya kebul na Flash Drive tare da tsarin FAT da ƙarfin ƙasa da 8GB.
Mataki 2: Kwafi fayil ɗin firmware zuwa kebul na Flash Drive kuma toshe kebul na Flash Drive zuwa ga FaceDeep 3 tashar USB.
Mataki na 3: Saita FaceDeep 3 Jerin don aiwatar da yanayin haɓaka firmware.
Shiga cikin na'urar Main menu, danna Saituna kuma zaɓi da Update.
Da fatan za a hanzarta danna alamar "USB Disk" a cikin FaceDeep 3 allon tare da (sau 10-20) har sai an buge shi Update Kalmar siri shigar da dubawa.
Shigar da "12345" kuma danna "Shigar" zuwa Yanayin haɓaka tilas! Danna "Fara" don haɓaka firmware. (Don Allah a tabbata cewa USB Flash Drive ya riga ya toshe cikin na'urar.)
Bayan haɓaka firmware da fatan za a sake kunna na'urar kuma bincika Kernel Ver. daga Basic Info is gf561464 don tabbatar da haɓakawa ya yi nasara. Idan ba haka ba da fatan za a duba matakan aiki kuma sake haɓaka firmware.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa -
Wanda ya kirkiro: Felix Fu
An sabunta: 3 ga Yuni, 2021 20:44
Da fatan za a tabbatar da Anviz na'urar ta riga ta haɗa da intanit kuma an haɗa ta da a CrossChex Cloud asusun kafin ka haɗa na'urar zuwa CrossChex Cloud Tsari. Idan baku san yadda ake yin na'urar akan layi ba, da fatan za a duba FAQ akan yadda ake haɗa na'urar a kunne FaceDeep 3.
Da zarar saitin cibiyar sadarwa ya yi kyau, za mu iya ci gaba da saitin haɗin girgije.
Mataki 1: Je zuwa shafin sarrafa na'ura (sa mai amfani: 0 PW: 12345, sannan ok) don zaɓar hanyar sadarwa.
Mataki 2: Zaɓi maɓallin Cloud.
Mataki 3: Mai amfani da shigar da kalmar wucewa wanda yake daidai da tsarin Cloud, Cloud Code, da Cloud Password.
Lura: Kuna iya samun bayanan asusun ku daga tsarin girgijen ku kamar yadda hoton ke ƙasa, lambar girgije ita ce id ta asusun ku, kalmar sirri ta girgije ita ce kalmar sirrin asusun ku.
Mataki na 4: Zaɓi uwar garken
Amurka - Sabar: Sabar Duniya: https://us.crosschexcloud.com/
AP-Server: Sabar Asiya-Pacific: https://ap.crosschexcloud.com/
Mataki na 5: Gwajin hanyar sadarwa
Note: Bayan na'urar da CrossChex Cloud suna da alaƙa, da a kusurwar dama Tambarin gajimare zai ɓace;
Da zarar na'urar ta haɗu da CrossChex Cloud cikin nasara, alamar na'urar za ta haskaka.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa -
Wanda ya kirkira: Chalice Li
An sabunta: 4 ga Yuni, 2021 15:58
Mataki 1: Shigar da menu na cibiyar sadarwa daga babban menu
Mataki 2: Saita yanayin WAN azaman Ethernet
Mataki 3: Je zuwa menu na Ethernet, gama saitin yanayin ip na Ethernet, DHCP ko a tsaye ya dogara da saitunan cibiyar sadarwar gida.
Mataki na 4: Yi amfani da CrossChex software don ƙara na'urar. Kuna iya bincika na'urar ko shigar da adireshin IP na na'urar da hannu a cikin hanyar LAN a ƙarƙashin saitin na'urar.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Yadda ake Duba Records a ciki FaceDeep 3? 06/11/2021
Wanda ya kirkira: Chalice Li
An sabunta: 4 ga Yuni, 2021 16:58
Lokacin da ma'aikaci ya yi agogon shiga ko agogon waje akan na'urar, zai nuna a ƙasan yanayin yanayin tare da lokacin naushi. Ma'aikata na iya zaɓar maɓallin aiki wanda aka nuna ta jan kibiya da duba bayanan.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Yadda Ake Kunna Gano Mask? 06/11/2021
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 17:58
Mataki 1: Je zuwa menu na aikace-aikacen ta hanyar menu na ci gaba
Mataki 2: Je zuwa menu Mask
Mataki 3: Ana iya kunna aikin gano abin rufe fuska a ƙarƙashin wannan menu. Mai gudanarwa na iya saita aikin ƙin abin rufe fuska azaman ƙararrawa kawai ko manufar sarrafawa.
Lura: Hakanan zaka iya saita faɗakarwar ƙararrawa a cikin menu na abin rufe fuska.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 17:58
Mataki 1: Je zuwa menu na aikace-aikacen ta hanyar menu na ci gaba
Mataki 2: Je zuwa menu na ma'aunin zafi da sanyio
Mataki 3: Saita ƙararrawar zazzabi a menu na zafin jiki
Mataki 4: Saita ƙararrawar abin rufe fuska a cikin menu na abin rufe fuska
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Zan iya Allon Baƙi a kunne FaceDeep 3 IRT? 06/11/2021
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 17:58
Ee, namu FaceDeep3 IRT yana da yanayin baƙo, ana iya ba baƙi damar shiga cikin wannan yanayin tare da yanayin zafi na yau da kullun da amfani da abin rufe fuska gwargwadon tsarin da kuka zaɓa. Da ke ƙasa akwai jagorar, yadda za a canza yanayin aiki?
Mataki 1: Je zuwa menu na aikace-aikacen ta hanyar menu na ci gaba
Mataki 2: Je zuwa menu na ma'aunin zafi da sanyio
Mataki 3: Shiga cikin yanayin aiki
Mataki na 4: Ana iya canza yanayin aiki a cikin wannan menu
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 16:58

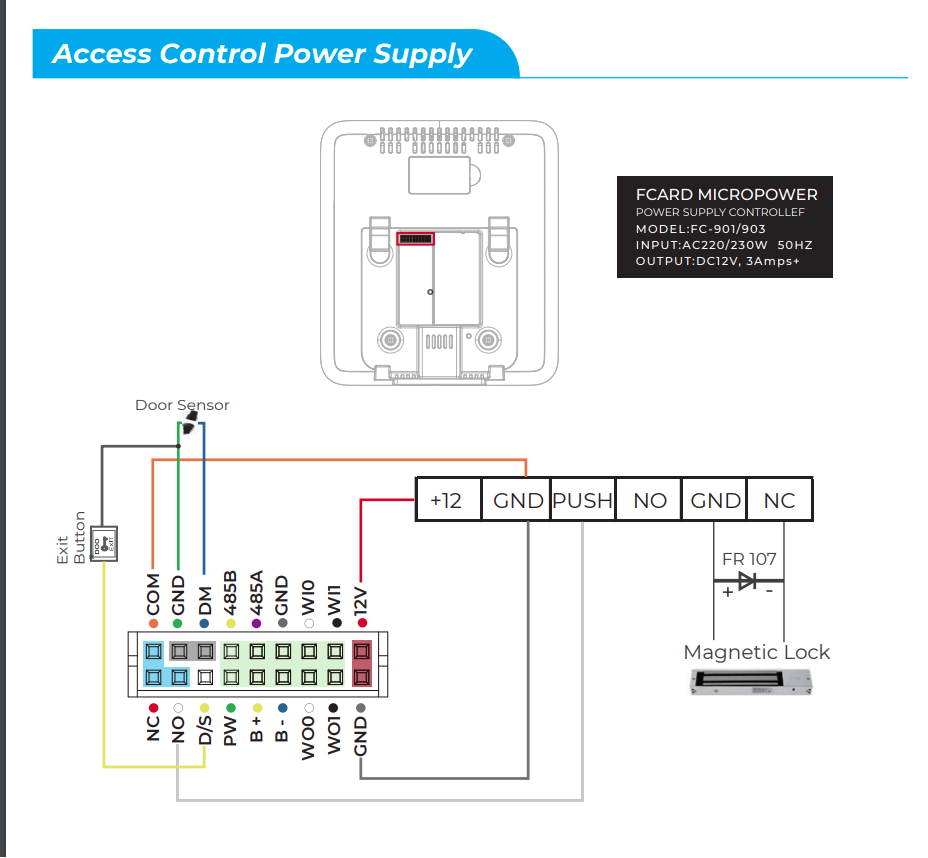

Da fatan za a koma zuwa jagorar shigarwa don ganin umarnin wayoyi don haɗawa FaceDeep 3 Series tare da tsarin sarrafa damar shiga. https://www.anviz.com/file/download/6565.html
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Zan iya girka FaceDeep 3 a Wuraren Waje? 06/09/2021
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 16:58
Mu FaceDeep3 ba na'urar hana ruwa ba ne, ba mu ba da shawarar abokin ciniki don shigar da shi a kowane yanki na waje ba.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 16:58
Da zarar an shigar da fuskarka, ba kwa buƙatar taɓa na'urar don yin rikodin. Kuna iya rajistar fuskarku ta Menu na na'urar ko ta sabar yanar gizo, CrossChex Standard or CrossChex Cloud.
Za a adana duk bayanan ta atomatik a cikin na'urar, matsakaicin zai iya kai har zuwa rajistan ayyukan 100,000.
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
-
Yaya Ingantacciyar Sensor Zazzabi? 06/08/2021
Wanda ya kirkira: Chalice Li
An sabunta: 7 ga Yuni, 2021 16:58
Mu FaceDeep3 IRT yana da babban firikwensin daidaito, cikakken kuskuren ya yi ƙasa da +/- 0.3ºC (0.54ºF).
Da fatan za a aika wasiku support@anviz.com idan kuna da wasu tambayoyi!
Anviz Ƙungiyar Tallafi ta Kasa
a kusurwar dama Tambarin gajimare zai ɓace;
